The Hypercom Type YA cable (#810025-001) is a male DB25 to three female DB25 cable.
The cable is used to connect a CID61 port processor to three RS232 DCE ports. The length
of the cable is 3’. Figure 4-60 illustrates the pinout for the Type YA cable.

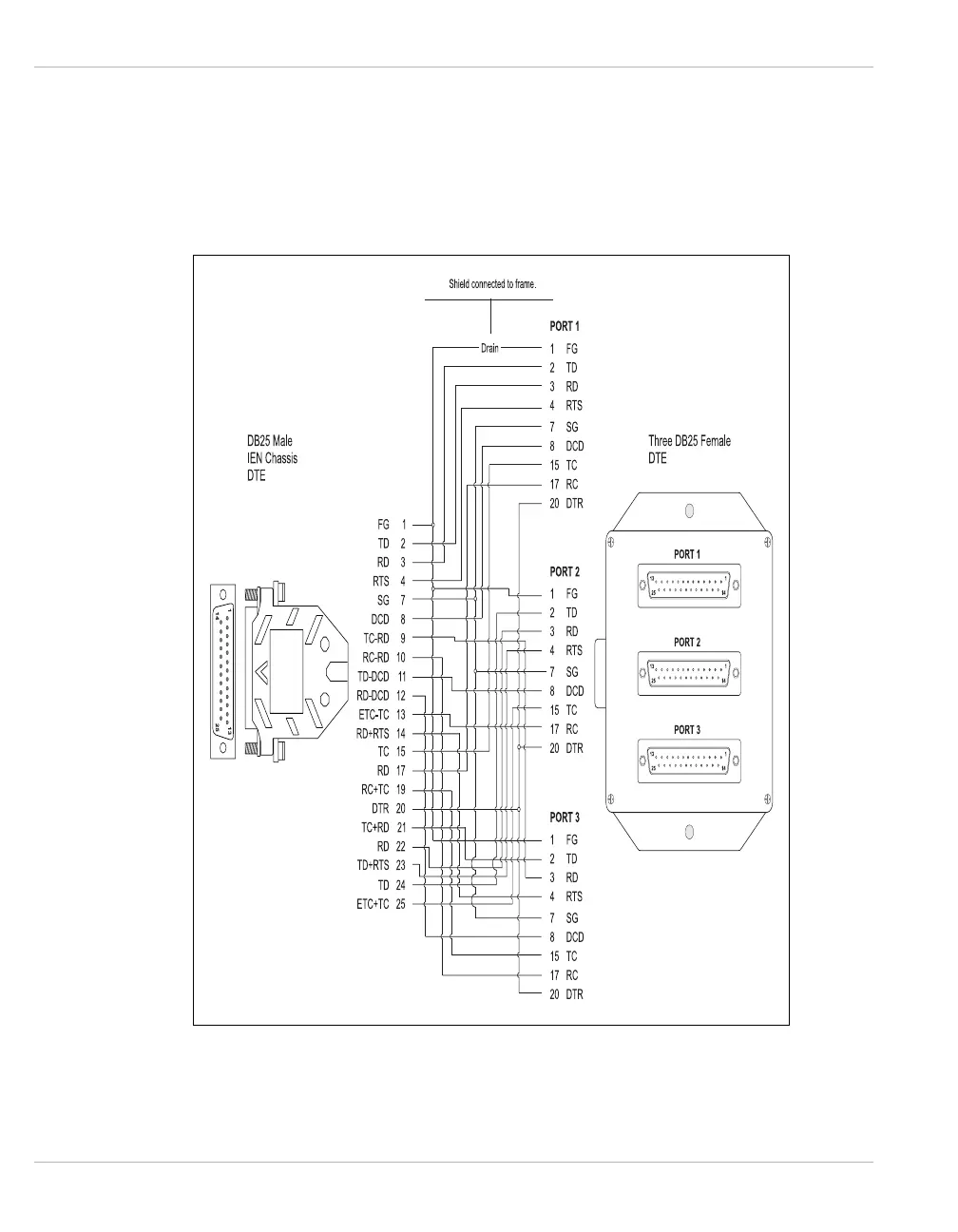

Figure 4-60 Type YA Cable Pinouts
