The IEC 320-C14 DC connector on an IEN node is modified to prevent the insertion of an
AC line cord. Figure 4-69 illustrates the 48VDC power connections for the IEN chassis.

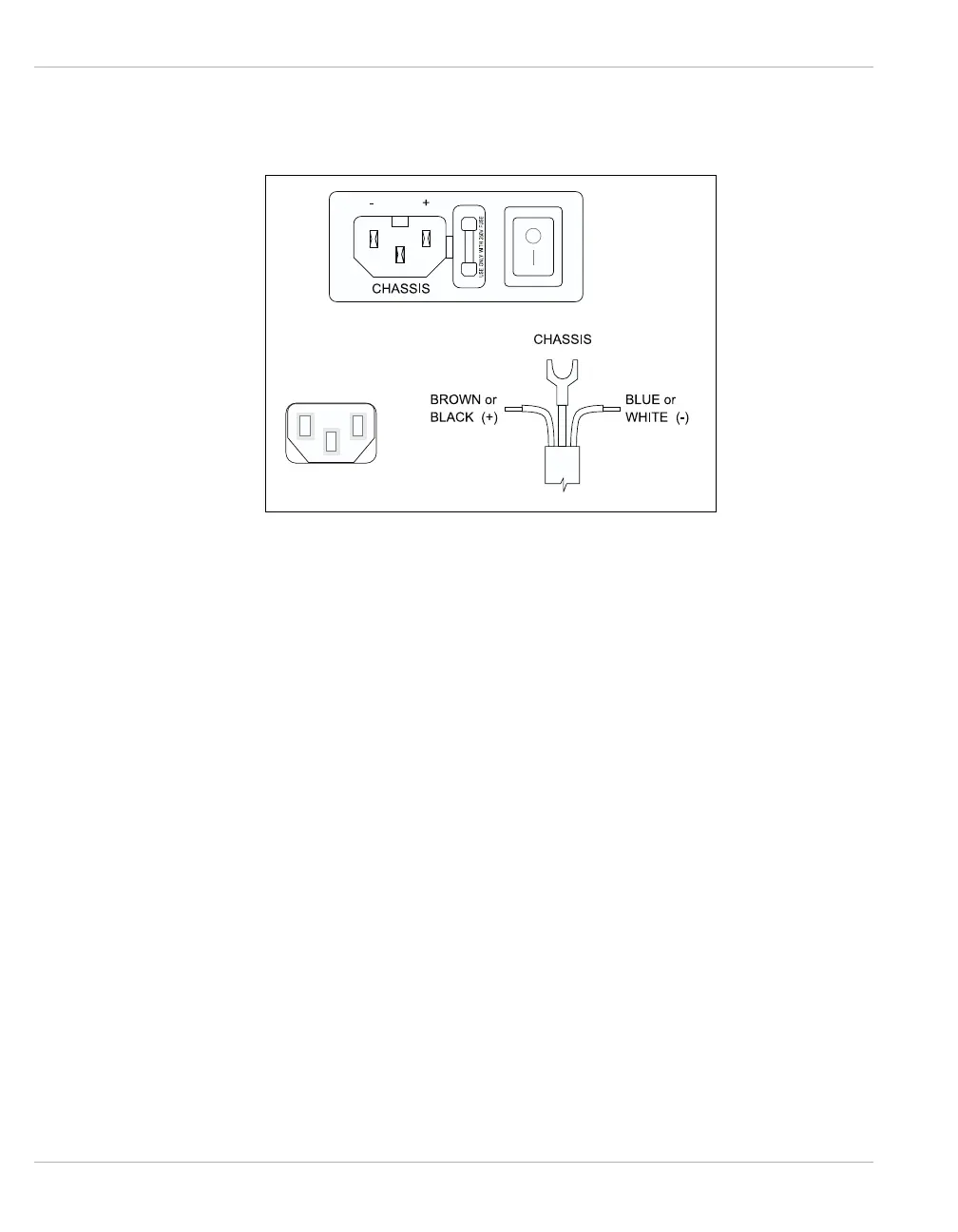

Figure 4-69 DC 48V Power Cable
