CHAPTER 3
3-20 IEN HARDWARE REFERENCE 940043-002
Figure 3-18 illustrates the block diagram for the DLA14 port processor.
Figure 3-18 DLA14 Block Diagram

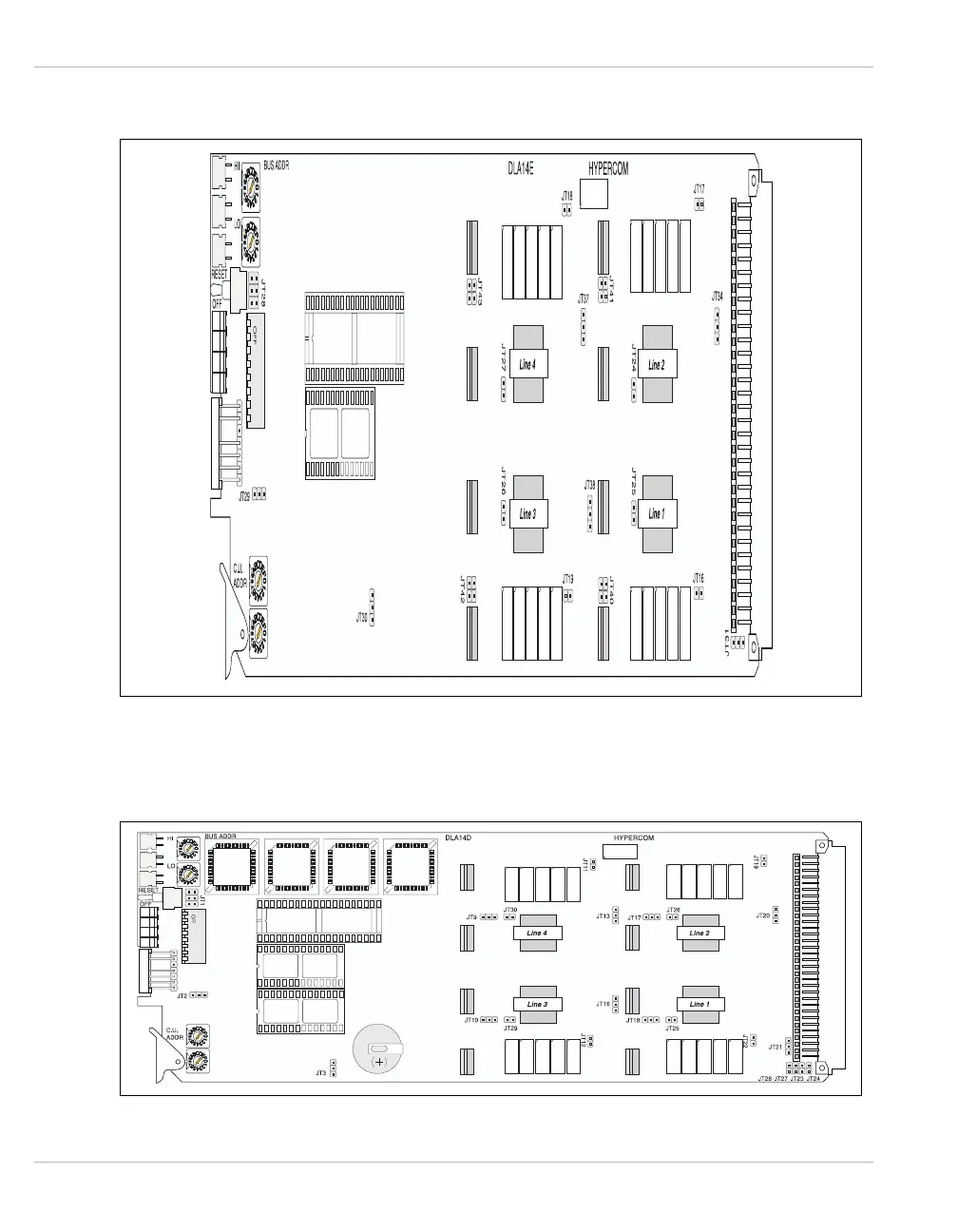

Figure 3-19 illustrates the jumper locations for the DLA14 port processor.
Figure 3-19 DLA14 Jumper Locations
