Each DVF08/18 channel is assigned a time slot that communicates with its assigned analog
(DLA14) or digital (DSX11) channel. The eight-channel capacity permits the DVF08/18 to
support two DLA14 port processors terminating four, 4-wire analog voice or two DLA14s
terminating eight, 2-wire analog voice. When used with the DTC11 T1 interface, three
DVF08/18/CID61s may be combined to support the 24 DS0s from the T1.

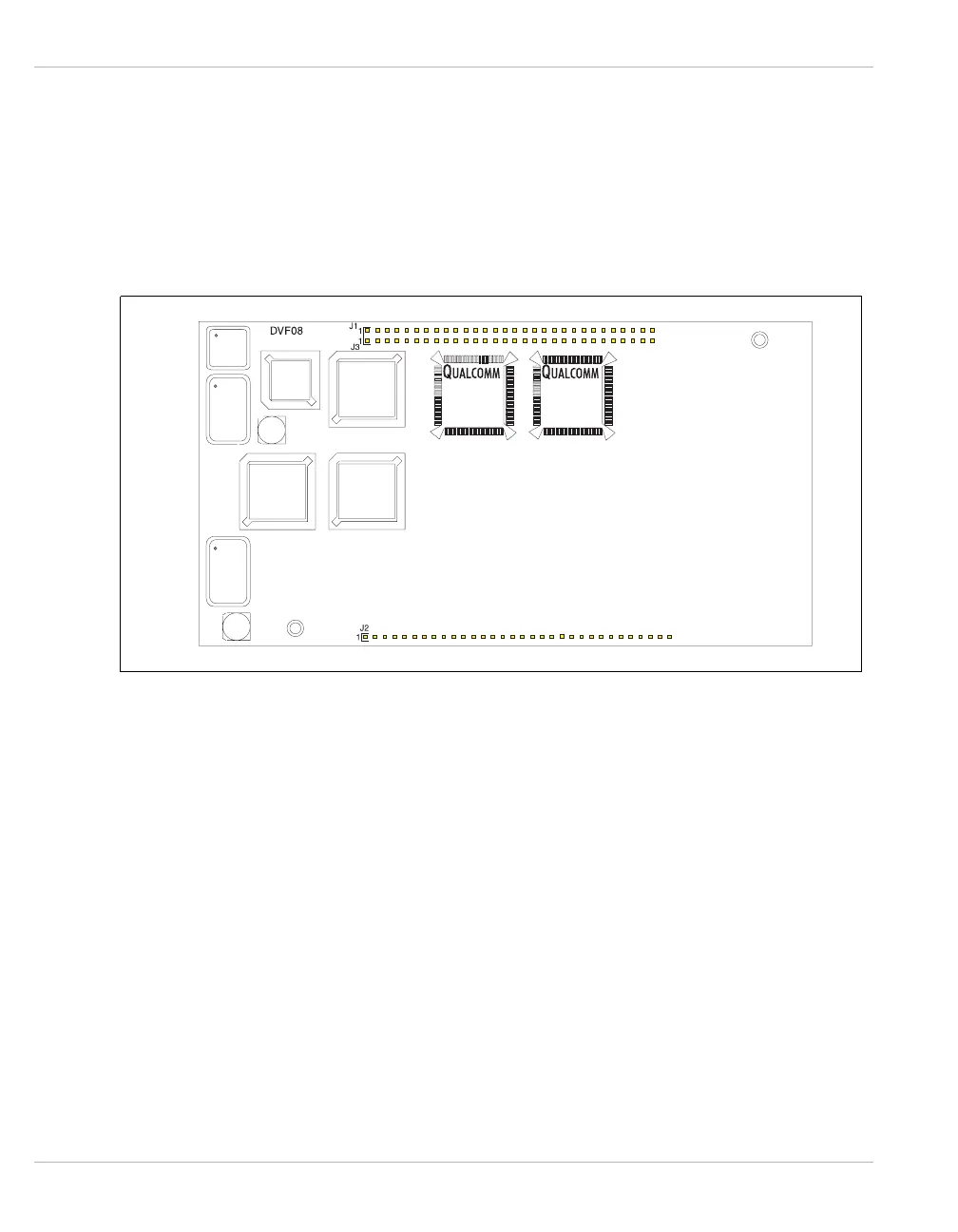

Figure 3-39 illustrates the front of the DVF08/18-2 module.
Figure 3-39 DVF08/18-2 Module Front
