186 Powermax30 AIR Service Manual 808850
7 Torch Component Replacement

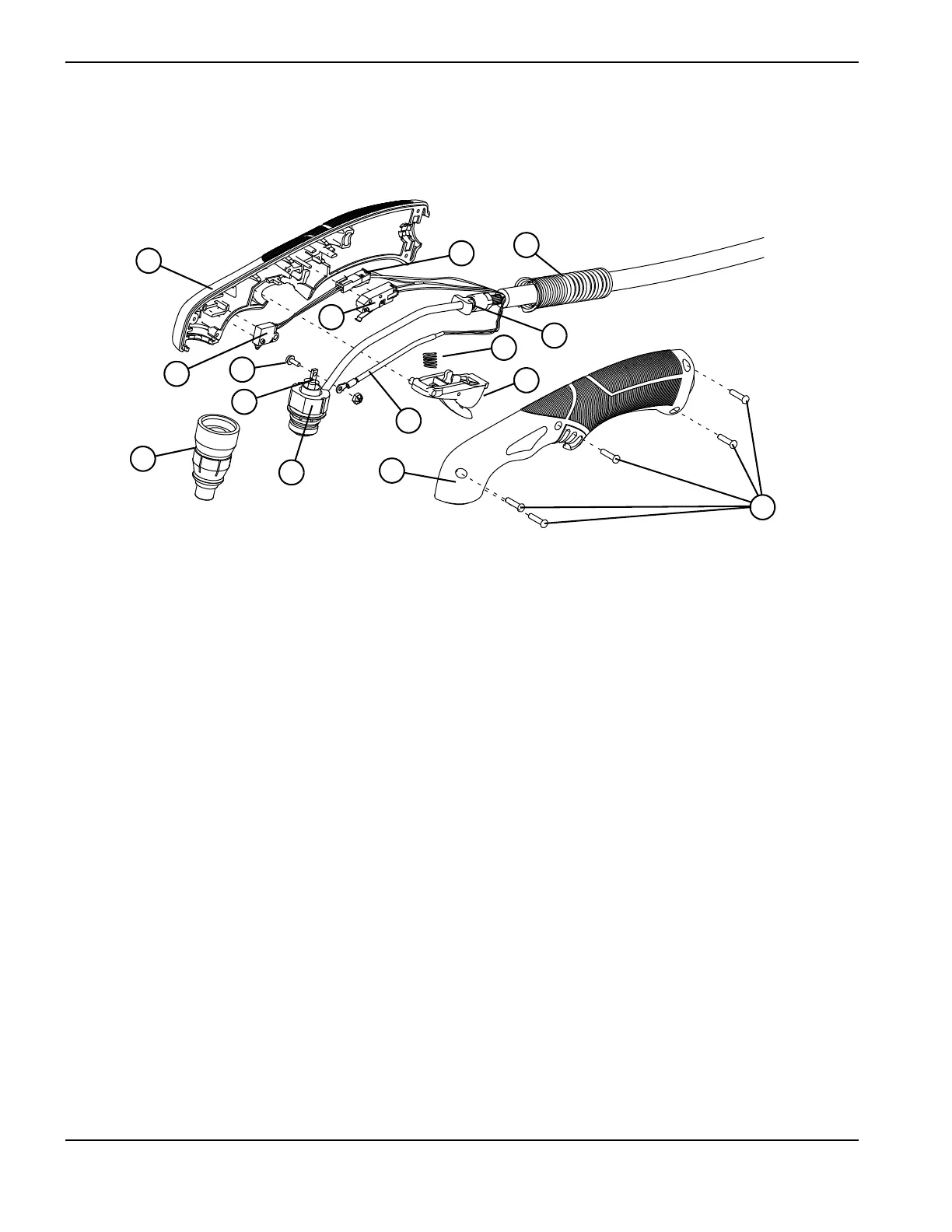

Torch components
Figure 93
1
5
3
7
4
10
11
12
13
14
2
6
9
8
15
1
Right side of the handle
2
Cap-sensor switch
3
Start switch
4
Plunger screw
5
Plunger
6
Consumables
7
Torch body
8
Torch power wire
9
Left side of the handle
10
Screws (5)
11
Trigger assembly
12
Trigger spring
13
Gas hose fitting’s flange
14
Strain relief
15
Cap-sensor wire connector
