Powermax30 AIR Service Manual 808850 71
5 – Troubleshooting and System Tests
Control board LEDs
The control board (PCB1) is located inside of the front panel.

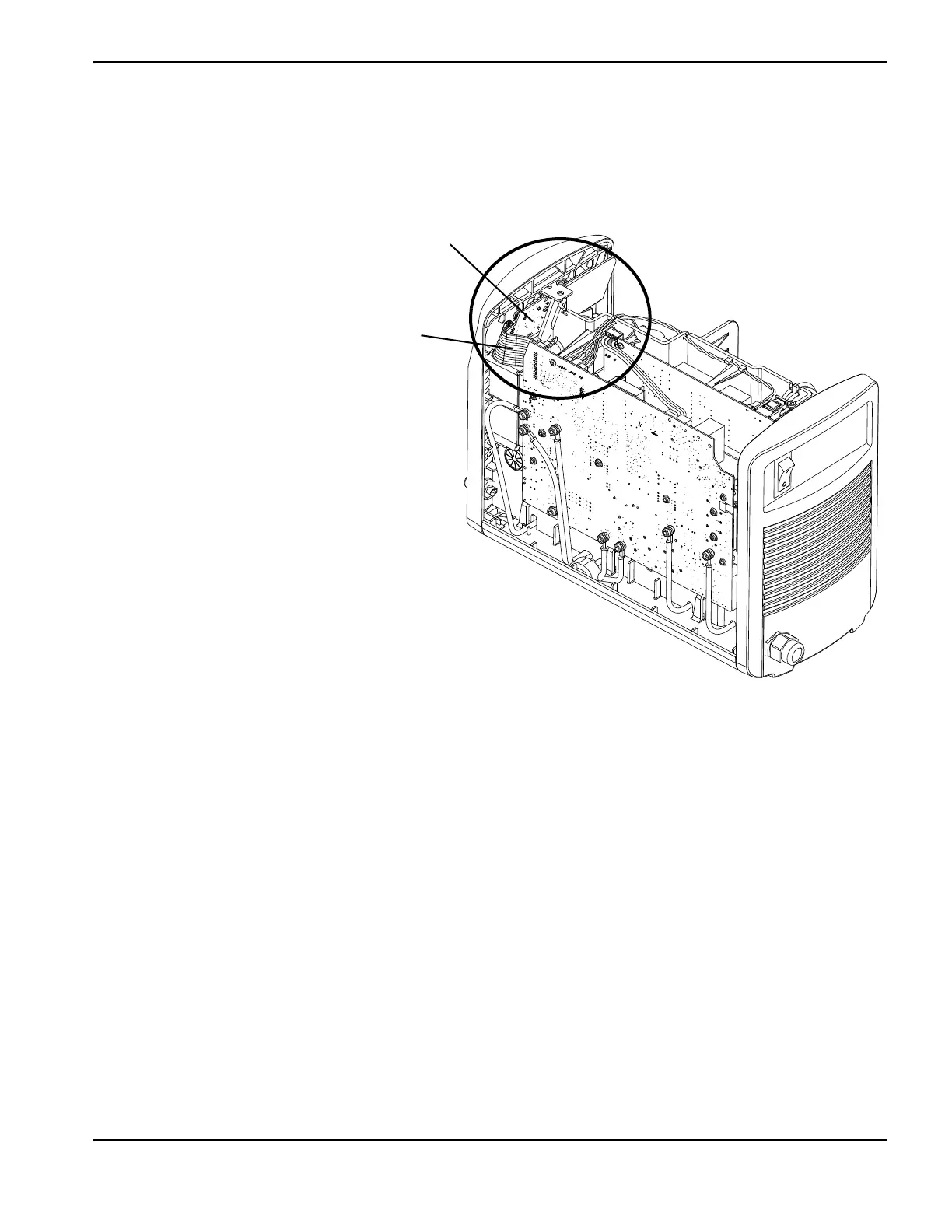

Figure 3
The control board has four diagnostic LEDs:
 Reset – This LED illuminates when certain voltage readings to the power board are out of range. See Reset LED on
page 72.
 Error – This LED illuminates when the internal compressor, torch cap, or temperature LEDs on the front of the power
supply illuminate. If all four LEDs on the front of the power supply are blinking, the Error LED also blinks. The number
of blinks between pauses indicates which component may have failed.
 Transfer – This LED illuminates when there is proper arc transfer between the torch and the workpiece, and blinks
during continuous pilot arc operation (such as when cutting expanded metal or moving the arc off the plate and then
back on).
 Start – This LED illuminates when the power supply receives a start signal and remains illuminated during normal
operation.
Control board
Ribbon cable

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
