Powermax30 AIR Service Manual 808850 121
6 – Power Supply Component Replacement

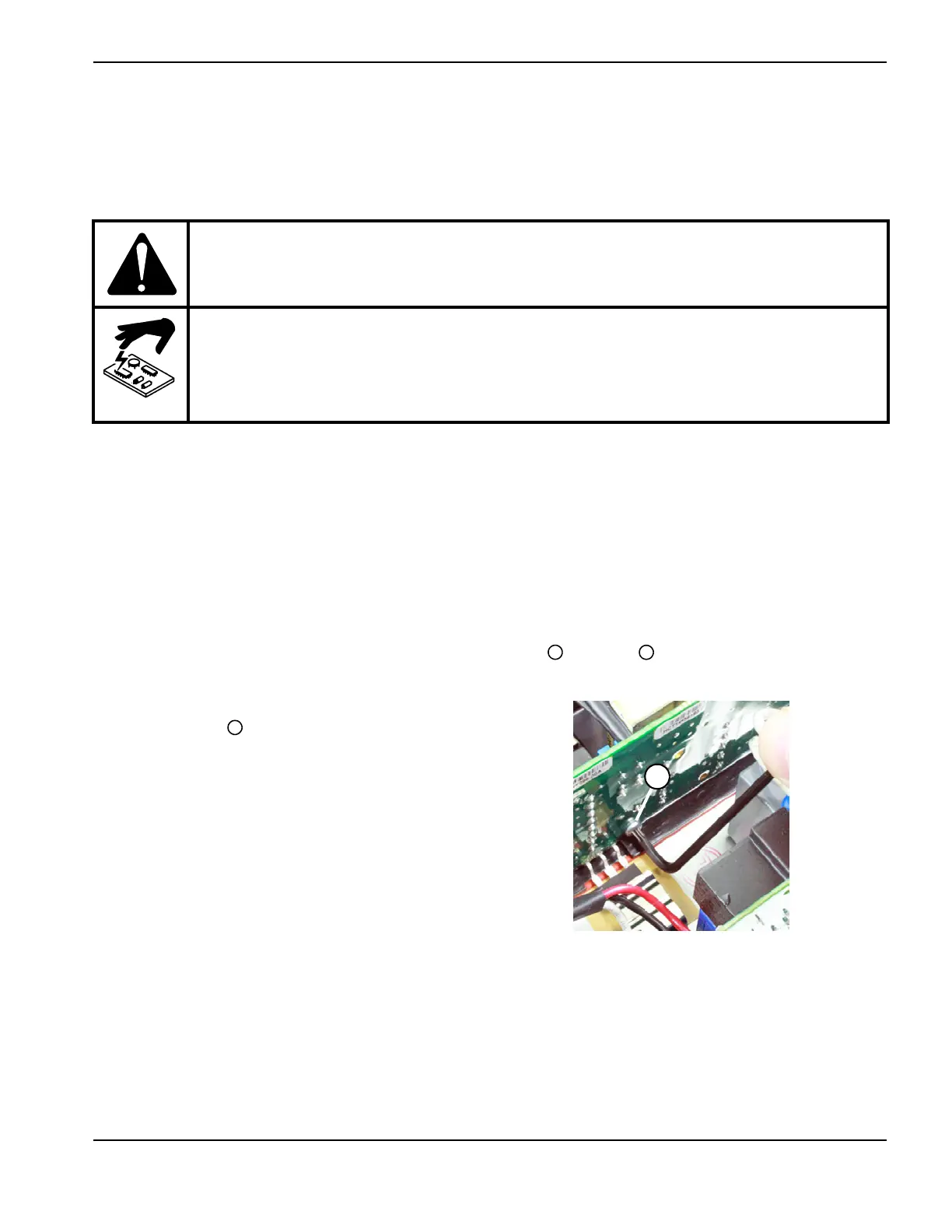

Replace the compressor-driver board
Remove the compressor-driver board
1. Complete the following procedures:
a. Set the power switch to OFF (O), and disconnect the power cord from the power source.
b. See Remove the power supply cover on page 98.
c. See Remove the component barrier on page 100.
2. Remove the wire connectors from the compressor-driver board at J1, J2, and J3. See Figure 42 on page 122.
3. Remove the screws that secure the clips covering the MOSFET and diode . Remove the clips and set them
aside.
4. Use a right-angle TORX
®
screwdriver to loosen the
retaining screw near the bottom of the
compressor-driver board, just above the heatsink.
Do not remove the screw.

A quarter turn to a half turn on the screw should
loosen it enough for you to remove the
compressor-driver board.
Kit number Description
428401 Kit: Compressor-driver board (includes thermal strips and polyimide tape) (141298)
CAUTION!
Static electricity can damage circuit boards. Use proper precautions when handling
printed circuit boards.
Store PC boards in anti-static containers.
Wear a grounded wrist strap when handling PC boards.
4
5
6
6

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
