Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 197
7 – Torch Component Replacement
Replace the torch lead
For details on how to remove an old torch lead from the power supply and connect a new lead, refer to Replace the torch
lead and strain relief on page 144.
1. Complete the following procedures:
a. Set the power switch to OFF (O), and disconnect the power cord from the power source.
b. Remove all components from the torch. See Remove the handle on page 187.

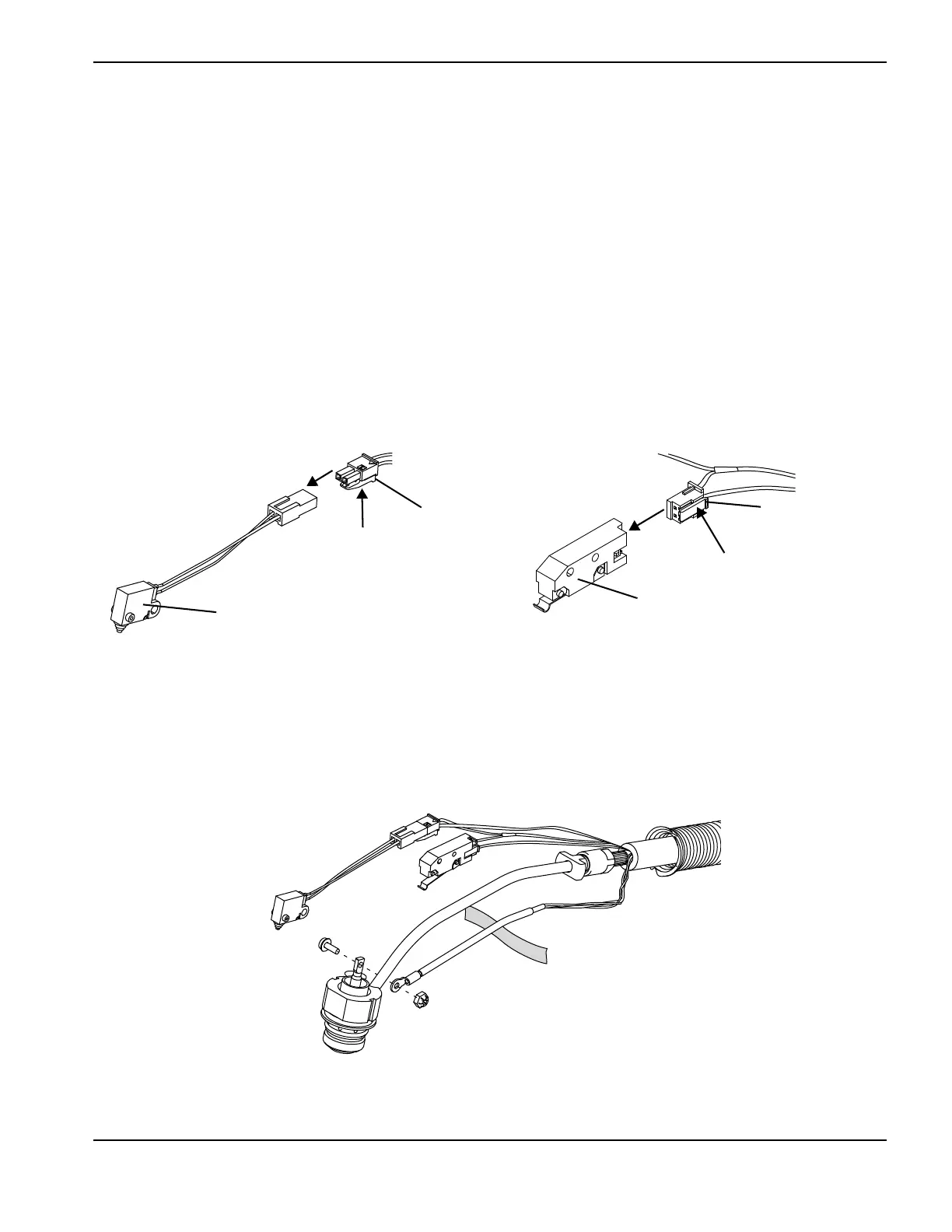

2. Disconnect the cap-sensor switch and start switch.
Figure 103
3. Remove the screw that attaches the torch power wire to the torch body. Set the nut and screw aside.
4. Peel off the tape that attaches the torch power wire to the torch body.
Figure 104
Kit Description
428176 Kit: Air T30 torch lead, 4.6 m (15 feet), with strain relief
Cap-sensor switch
Tab
Tab
Start switch
Peel tape to remove

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
