3 – Torch Setup
Consumable set
A complete set of consumables includes:
 Electrode
 Swirl ring
 Nozzle
 Retaining cap
 Deflector
The following consumables are designed specifically for use with the Powermax30 AIR power supply and
Air T30 hand torch. They cannot be used with any other Powermax system or torch.

Hypertherm does not recommend operating this system on a 120 V / 15 A circuit.

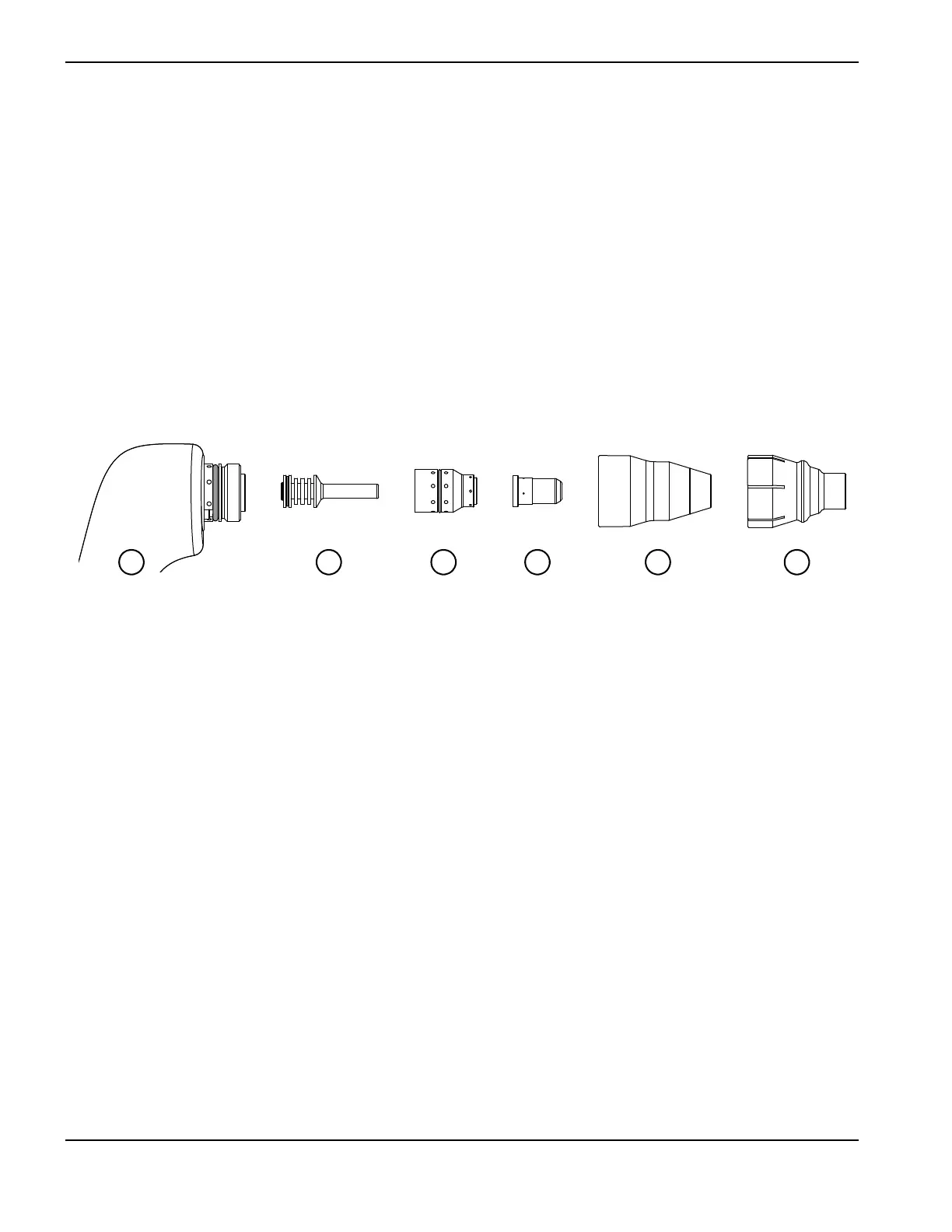

54321 6
1
Torch
2
Electrode
3
Swirl ring
4
Nozzle
5
Retaining cap
6
Deflector

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
