Hypertherm Powermax30 AIR Service Manual

208 Powermax30 AIR Service Manual 808850
8 – Parts

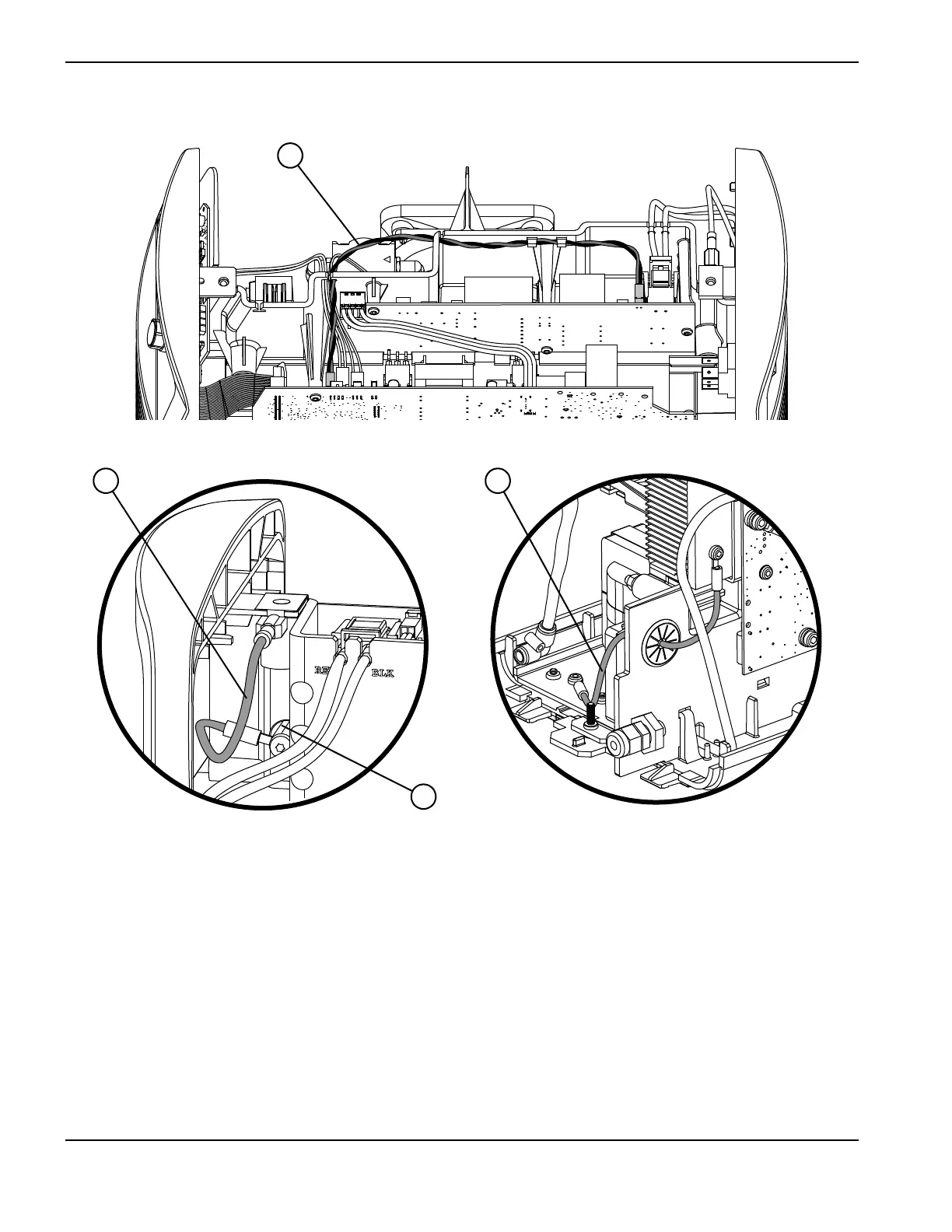

Interior, wires
Item Kit number Description
428405 Kit: Wire group:
1
 Power board (J9) to compressor-driver board (J1) twisted pair wires (red and
black)
2
 Ground clip wire from rear panel to center panel (green)
3
 Ground wire from heatsink to magnetics assembly (green)
4 428413 Kit: Replacement hex nut standoff (5) for attaching ground clip wire to center panel
2
1
3
4

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
