Hypertherm Powermax30 AIR Service Manual

202 Powermax30 AIR Service Manual 808850
8 – Parts
Power supply parts

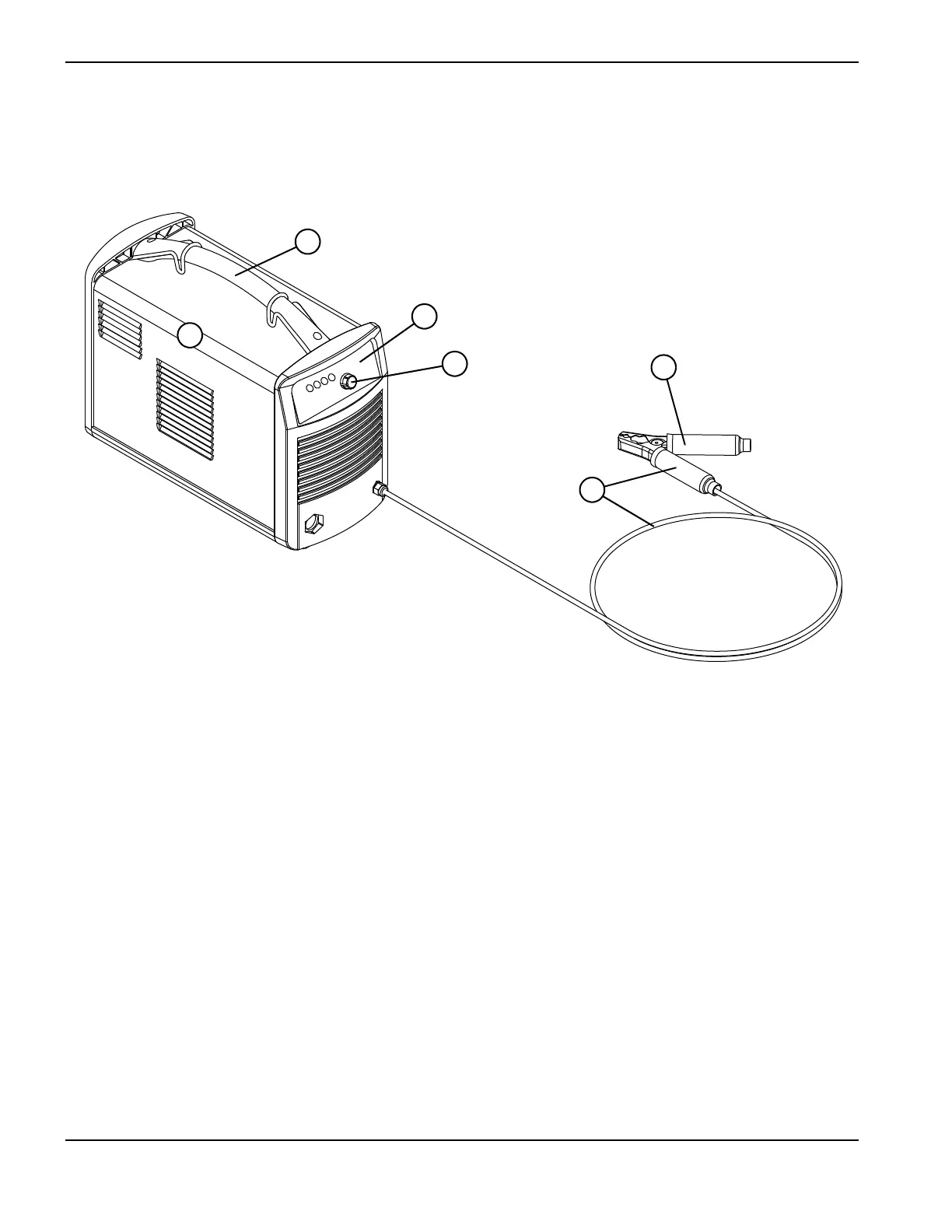

Exterior, front
Item Kit number Description
228096 Kit: Screws kit (not shown):
 Screws for power supply handle (2)
 Retaining screws for front and rear panels (2)
1 228267 Kit: Power supply handle (includes screws and shoulder strap clips)
2 428396 Kit: Power supply cover with labels, CSA
2 428398 Kit: Power supply cover with labels, CSA, Built in America
2 428397 Kit: Power supply cover with labels, CE
3 428226 Kit: Current adjustment knob
4 428389 Kit: Front panel (does not include current adjustment knob)
5 428388 Kit: Work lead, 4.6 m (15 feet), with ground clamp
6 228561 Kit: Ground clamp
1
2
3
4
6
5

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
