Hypertherm Powermax30 AIR Service Manual

46 Powermax30 AIR Service Manual 808850
4 – Operation

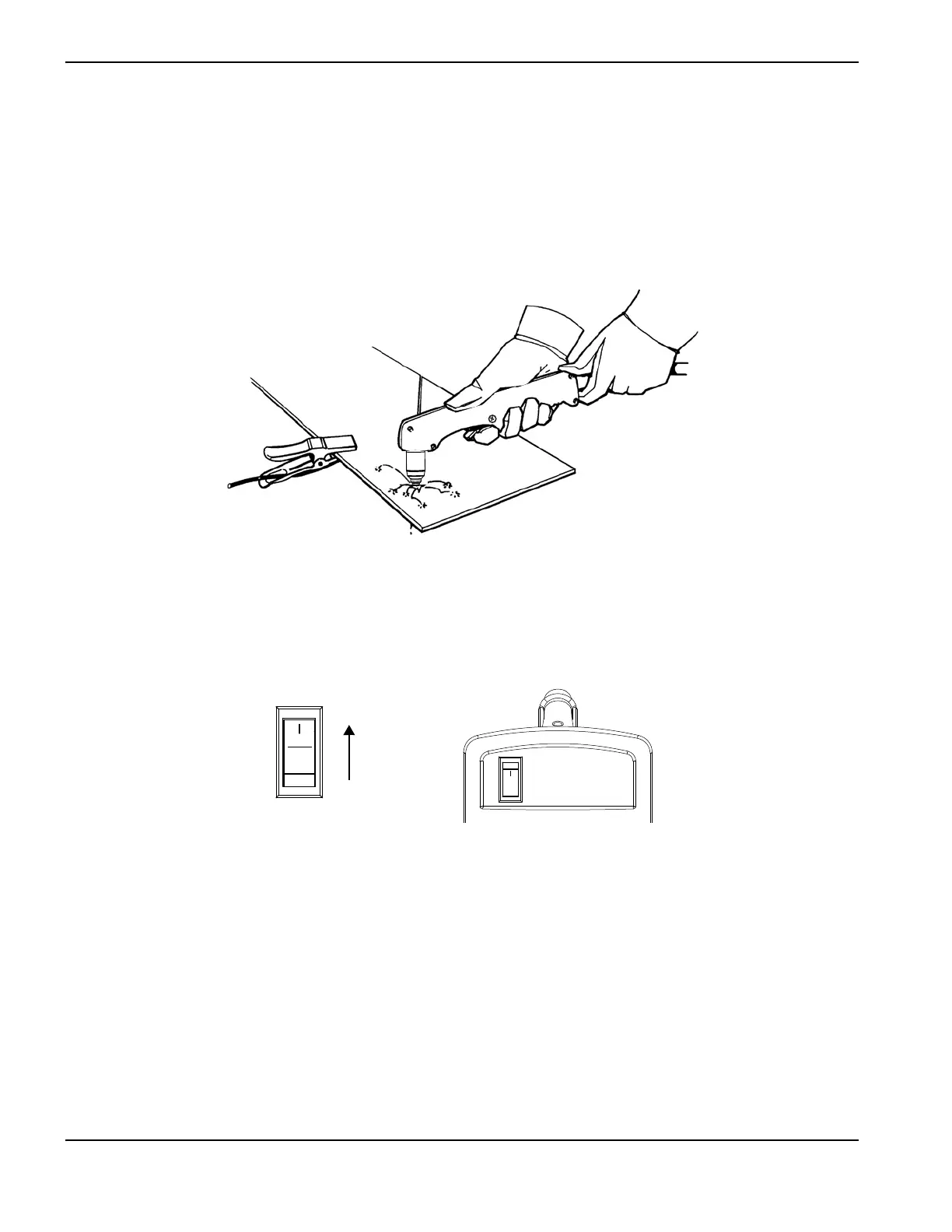

Step 4 – Attach the ground clamp
Attach the ground clamp to the workpiece.
 Make sure the ground clamp and the workpiece make good metal-to-metal contact.
 Attach the ground clamp as close as possible to the area being cut to reduce exposure to electric and magnetic
fields (EMF) and to achieve the best possible cut quality.
 Do not attach the ground clamp to the portion of the workpiece that you are cutting away.
Step 5 – Power ON the system
Set the ON/OFF switch to the ON (I) position.
O
O

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
