Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 203
8 – Parts

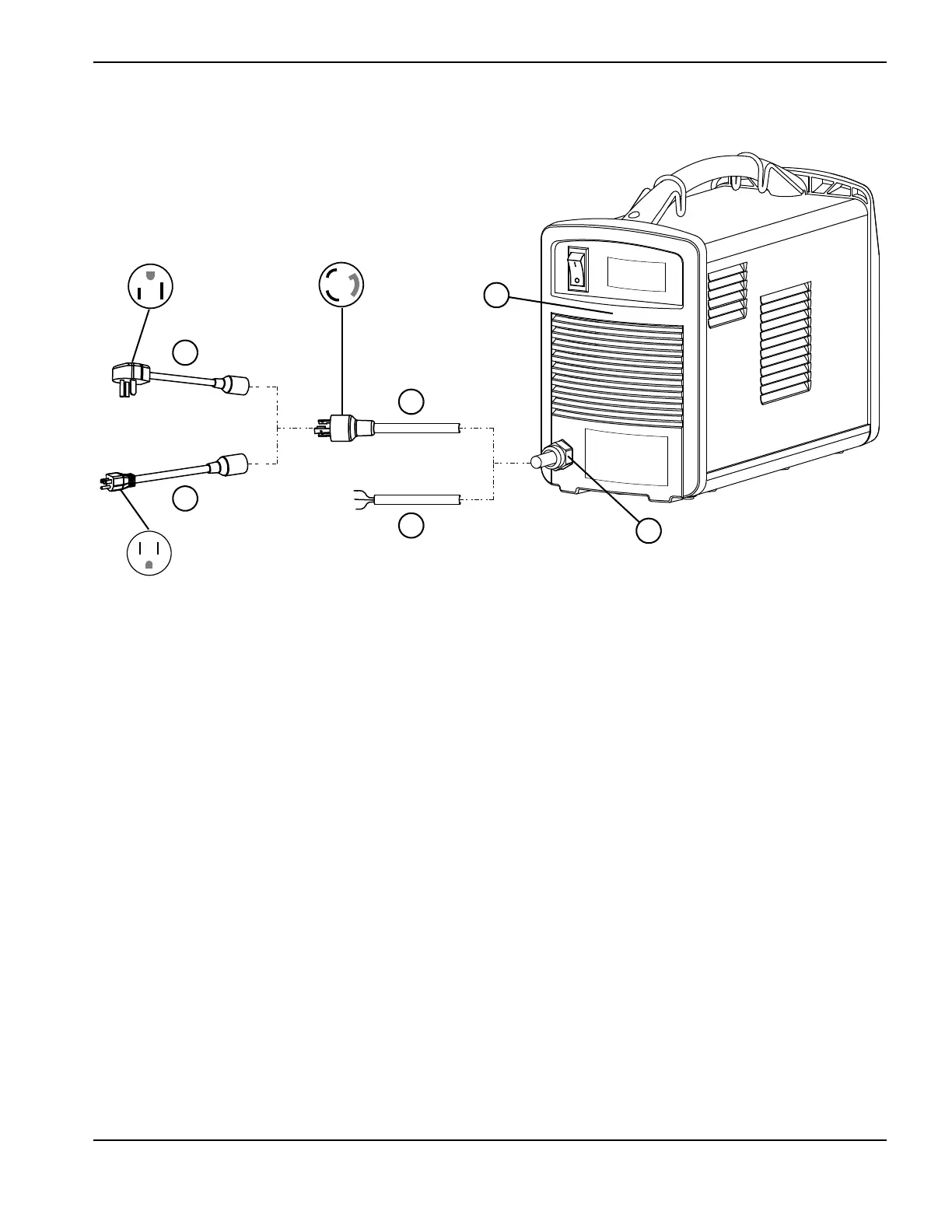

Exterior, rear
Item Kit number Description
1 229133 CSA power cord extension: 240 V / 20 A plug adapter
2 229132 CSA power cord extension: 120 V / 15 A plug adapter
3 228210 Kit: CSA power cord with NEMA twist lock-style 240 V / 20 A plug, 1-phase,
3.0 m (10 feet) (strain relief not included)
4 428390 Kit: CE power cord, 1-phase, 3.0 m (10 feet) (plug and strain relief not included)
5 228143 Kit: Power cord strain relief
6 428391 Kit: Rear panel (includes data plate and consumables label)
1
2
3
4
5
NEMA 6-50P
NEMA 5-15P
NEMA L6-20P
6

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
