Hypertherm Powermax30 AIR Service Manual

50 Powermax30 AIR Service Manual 808850
4 – Operation

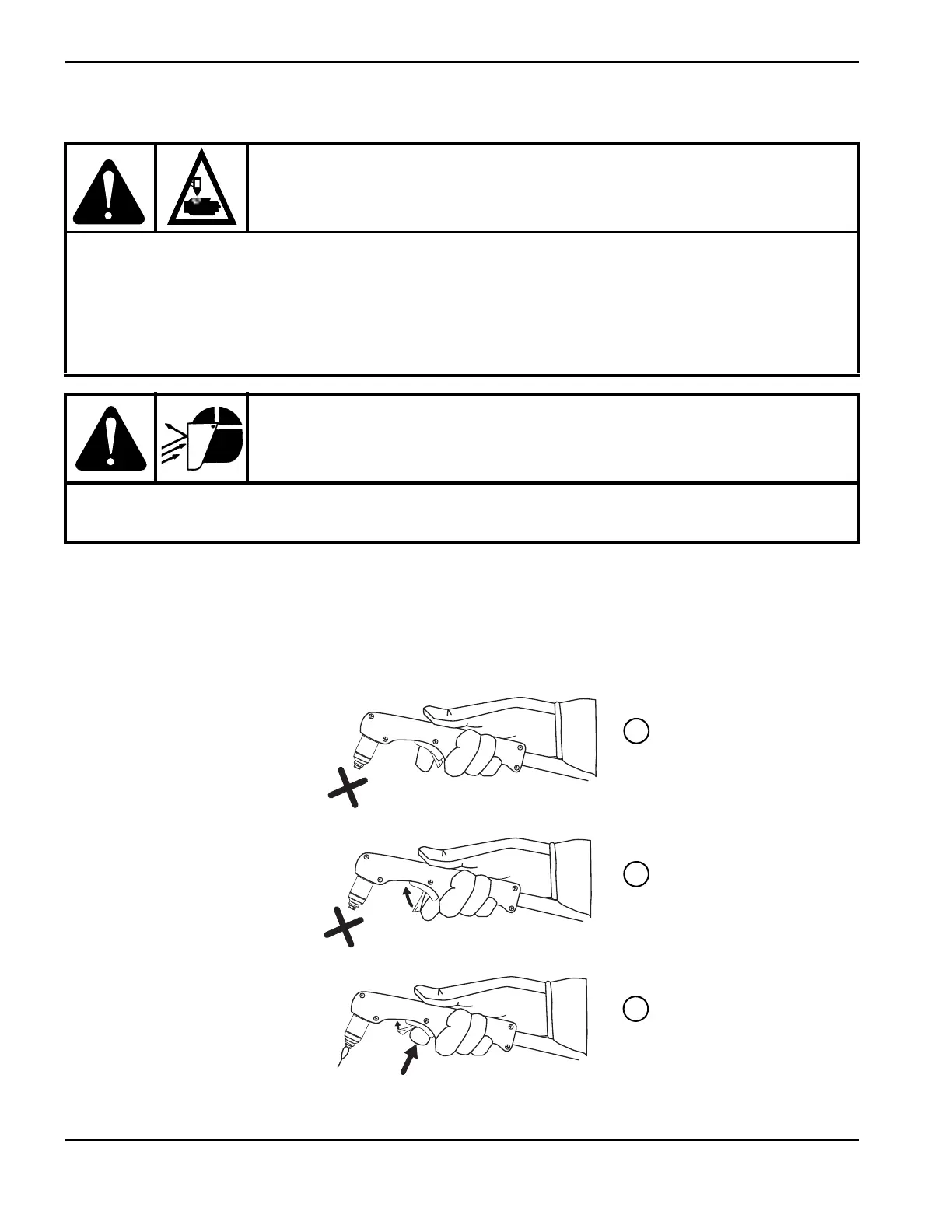

Hand torch operation
Safety catch operation
The torch is equipped with a safety catch to prevent accidental firings. When you are ready to cut with the torch, flip the
safety catch forward (toward the torch head) and pull the red torch trigger.
WARNING!
INSTANT-ON TORCHES
PLASMA ARC CAN CAUSE INJURY AND BURNS
Plasma arc ignites immediately when you pull the torch trigger. The plasma arc cuts quickly through
gloves and skin.
Keep hands, clothes, and objects away from the torch tip.
Do not hold the workpiece, and keep your hands clear of the cutting path.
Never point the torch toward yourself or others.
WARNING!
SPARKS AND HOT METAL
CAN INJURE EYES AND BURN SKIN
Always wear proper protective equipment including gloves and eye protection, and point the torch
away from yourself and others. Sparks and hot molten metal spray out from the nozzle.
1
2
3

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
