Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 221
9 – Wiring Diagrams

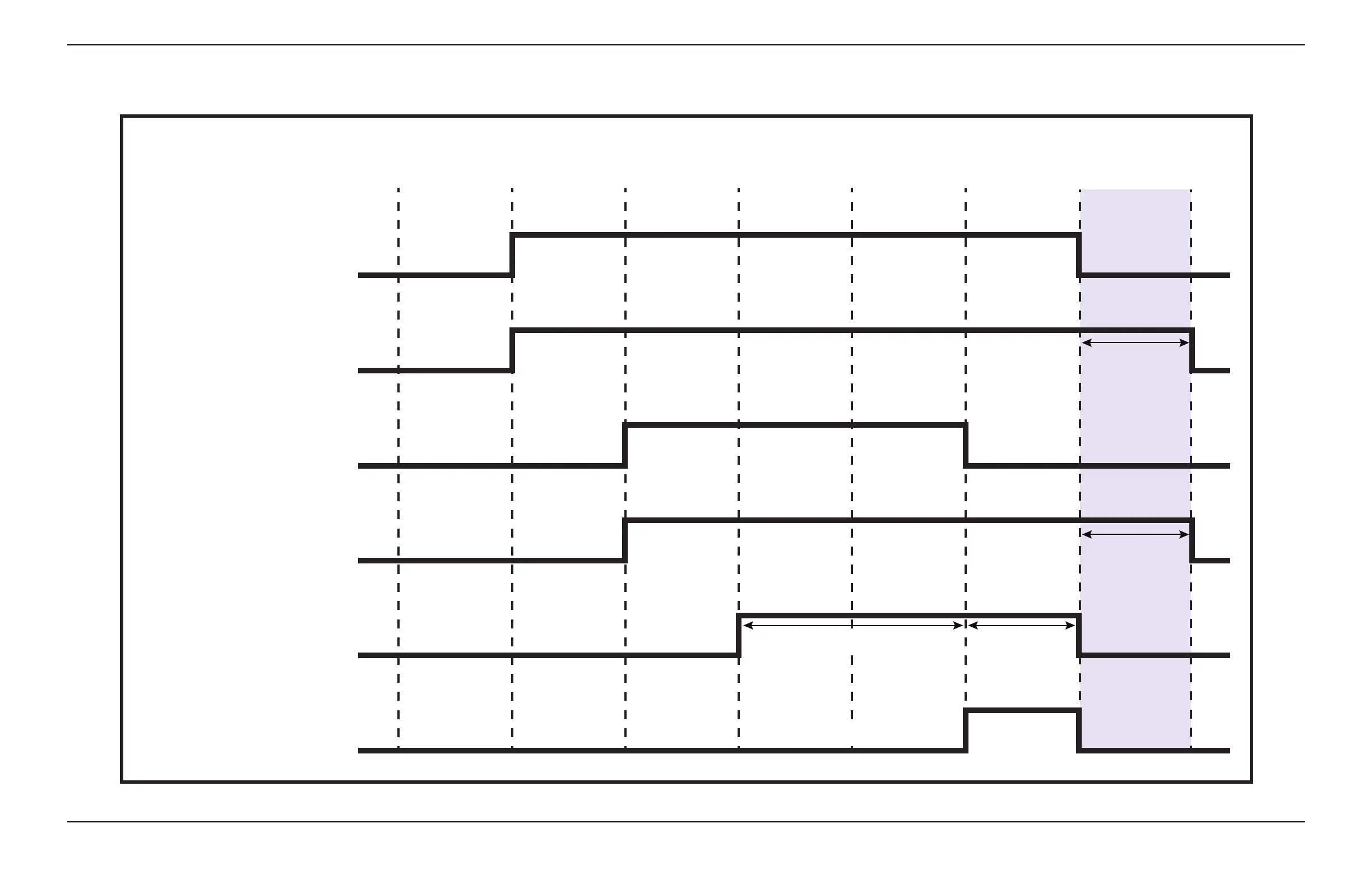

Timing chart for torch start
Idle
Compressor
pressurizes
(350 ms)
Gas
solenoid opens
(15 ms)
Inverter on
until pilot arc
established
Transfer
(when work lead
current > 0.4 A)
Cutting
(steady state)
Torch
trigger released Idle
Start signal (torch trigger) ON/OFF
(control board Start LED ON/OFF)
Internal compressor ON/OFF
Pilot arc IGBT ON/OFF
Gas solenoid ON/OFF
Inverter output ON/OFF
Control board Transfer LED ON/OFF
(system is cutting)
Postflow
(5–20 seconds)
Postflow
(5–20 seconds)
User-set currentPilot arc current = 15 A
Transfer threshold: 1.6 A

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
