Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 211
8 – Parts

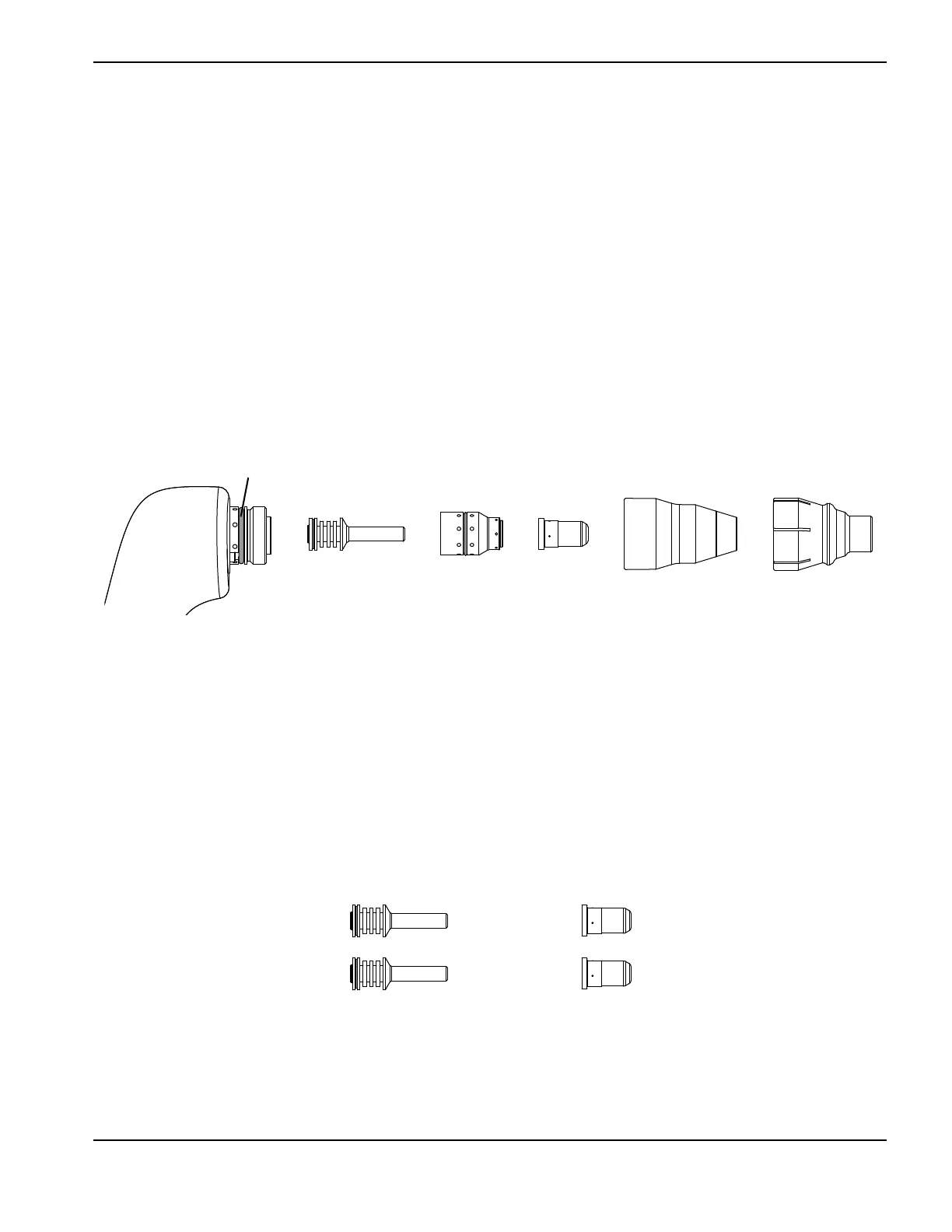

Hand torch consumables
To order consumables for your Air T30 torch, use the following part numbers.
You can order individual packages of nozzles and electrodes, or you can order them combined as a kit:
 Use 420134 to order a package of 5 nozzles.
 Use 420132 to order a package of 5 electrodes.
 Use 428350 to order a kit of 2 nozzles and 2 electrodes.

These consumables are designed specifically for use with the Powermax30 AIR power
supply and Air T30 hand torch. They cannot be used with any other Powermax system or
torch.
Individual consumables
Kit: electrode (2) + nozzle (2)
420133420132 420134 420135
Electrode Swirl ring Nozzle Retaining cap
428179
Torch O-ring Deflector
420399
428350

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
