210 Powermax30 AIR Service Manual 808850
8 – Parts
Hand torch parts

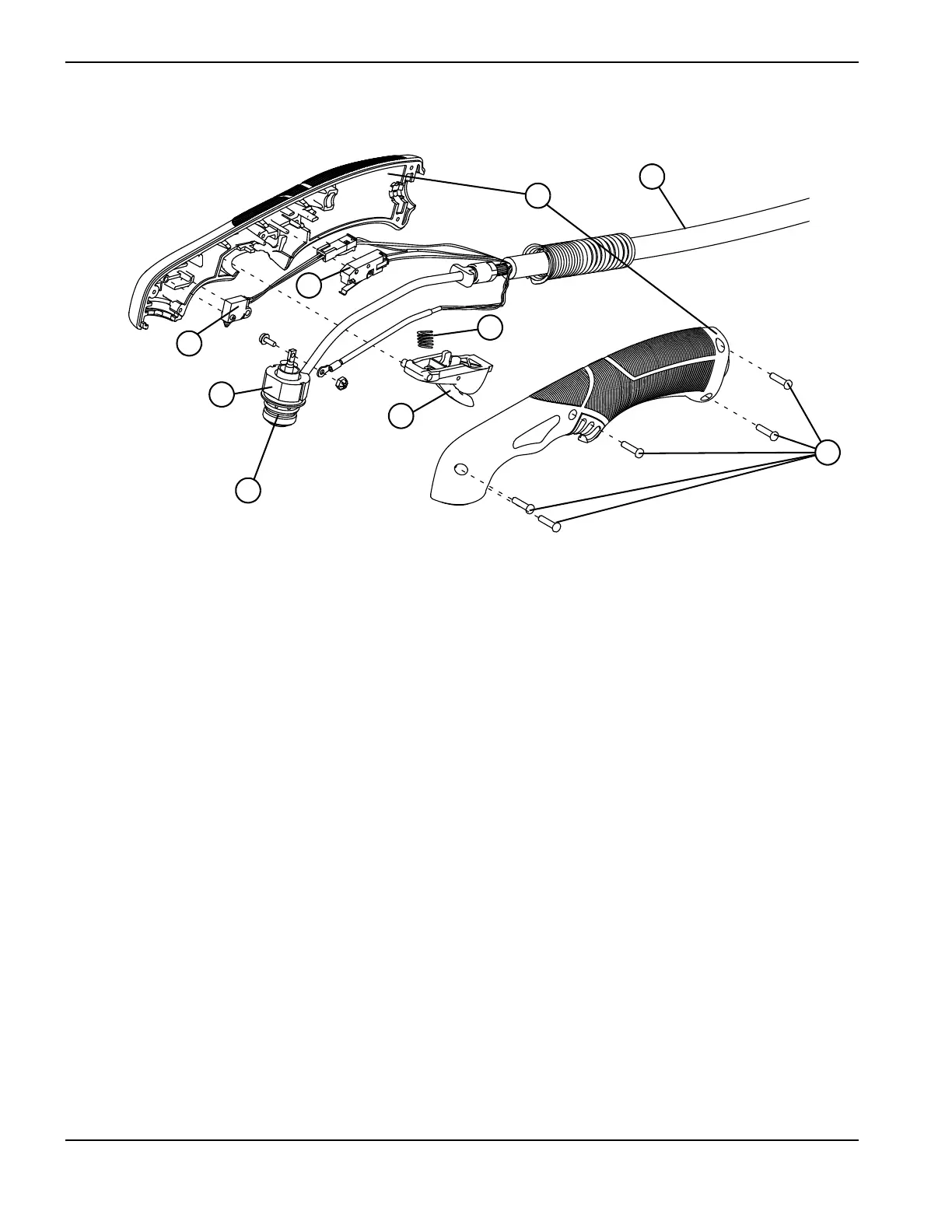

You can replace the entire hand torch and lead assembly, or you can replace individual torch components.
Item Kit number Description
428393* Kit: Air T30 hand torch assembly with 4.6 m (15 foot) lead
1 228109 Kit: Torch cap-sensor switch
2 428162 Kit: Torch start switch
3 428394 Kit: Air T30 torch body (includes O-ring)
4 428179 Kit: Replacement O-rings (5) for torch body
5 428156 Kit: Torch trigger and spring
6 428182 Kit: Replacement springs (5) for torch trigger
7 428381 Kit: Air T30 torch handle (includes handle screws)
8 428181 Kit: Air T30 torch replacement screws for handle
9 428176 Kit: Air T30 torch lead, 4.6 m (15 feet), with strain relief
* The torch assembly includes one set of consumables:
 Electrode (420132)
†
 Swirl ring (420133)
 Nozzle (420134)
†
 Retaining cap (420135)
 Deflector (420399)
† You can also order nozzles and electrodes together using
kit 428350. This kit contains 2 nozzles and 2 electrodes.
Replace the nozzle and electrode at the same time.
1
3
5
7
9
4
8
2
6

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
