Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 207
8 – Parts

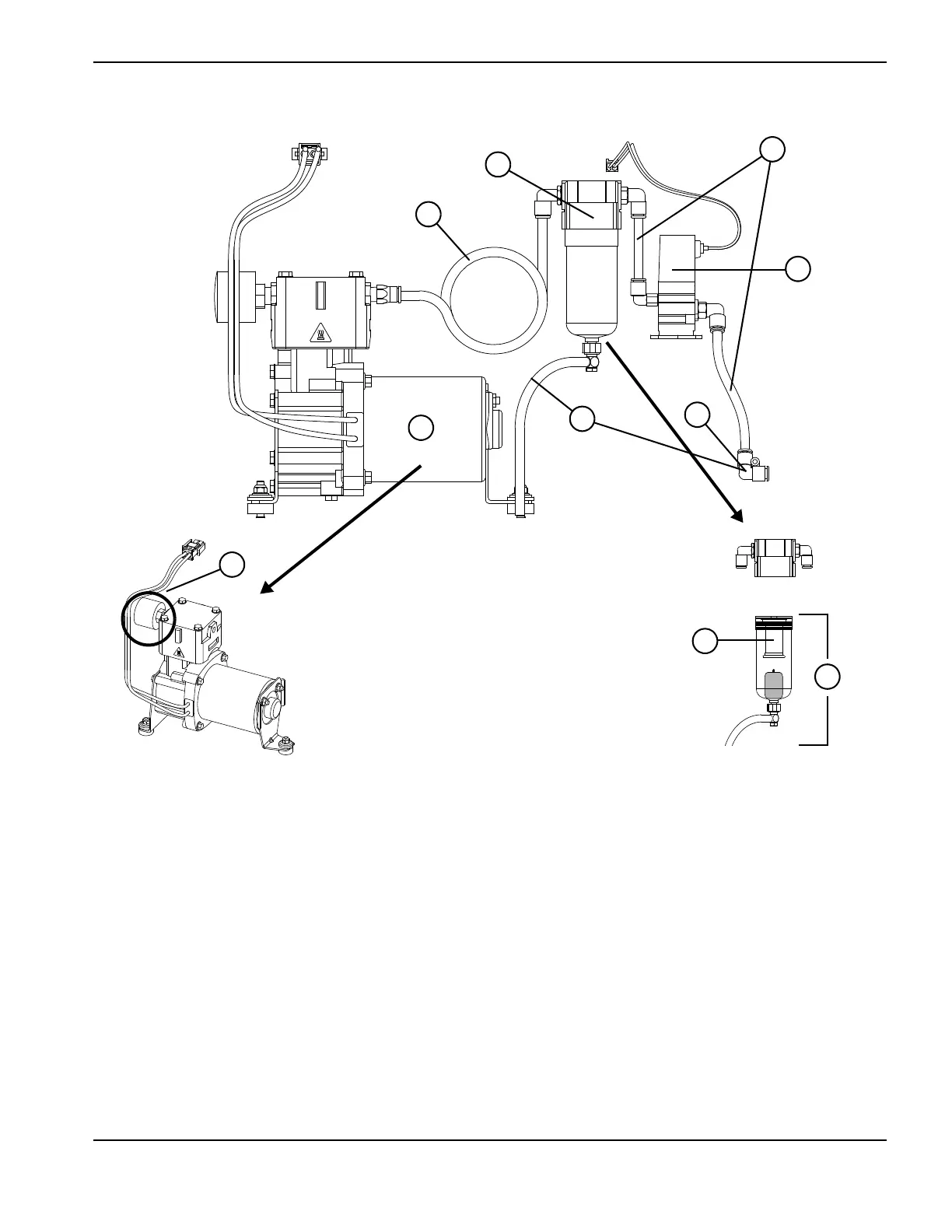

Interior, pneumatics (fan side)
Item Kit number Description Designator
1 428377 Kit: Internal compressor (includes air inlet filter and exhaust fitting)
2 428379 Kit: Air inlet filter for internal compressor
3 428376 Kit: Heat exchange coil (includes elbow fitting for air filter and
exhaust fitting for internal compressor)
4 428375 Kit: Air filter assembly (includes gas hose, drain tube, and elbow
fittings)
5 428378 Kit: Air filter element
6 428380 Kit: Air filter bowl (includes air filter element, O-ring, and drain hose)
7 428374 Kit: Solenoid valve (includes gas hoses and elbow fittings) V1
8, 9 428373 Kit: Drain hose, 2 gas supply hoses, elbow fitting
9 428238 Kit: Replacement elbow fitting for torch lead
1
6
5
2
3
4
7
8
9
8

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
