Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 213
8 – Parts
Safety-critical parts
Genuine Hypertherm parts are factory-recommended parts for your Hypertherm system. Any damage caused by the use
of parts that are not from Hypertherm may not be covered by the Hypertherm warranty. In addition, the following parts are
safety-critical parts that must be replaced only with genuine Hypertherm parts to maintain the warranty and system
certifications, including CE and CSA certification.
Item Kit number Description
1 428402 Kit: Power board (CSA) and subcomponents
1 428403 Kit: Power board (CE) and subcomponents
2 428401 Kit: Compressor-driver board
3 428235 Kit: Power switch
3

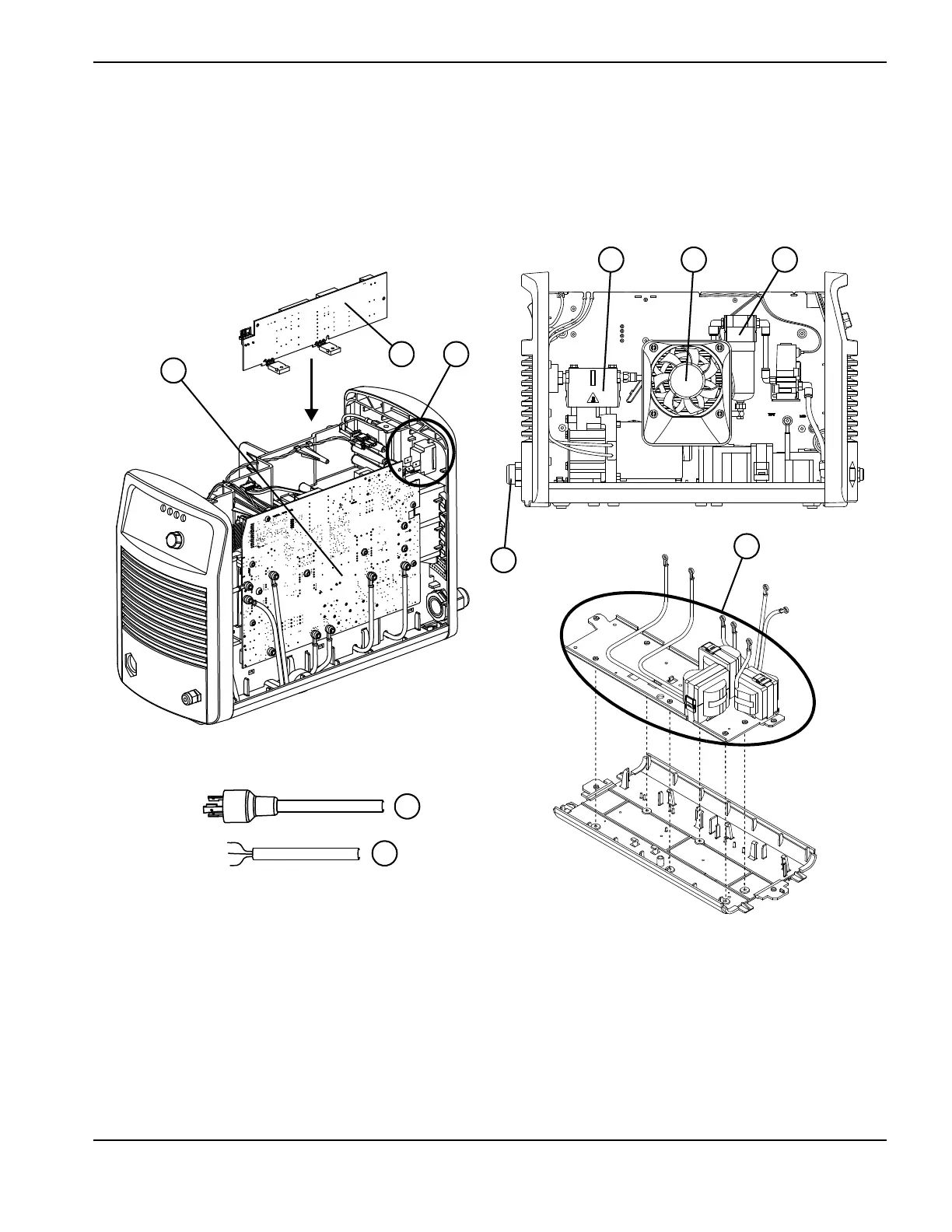

4 5
7
8
9
6
10
2
1

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
