The Powermax30 AIR includes the Air T30 hand torch. This section explains how to set up and operate your torch. To
achieve optimal consumable life and cut quality, follow the instructions in this manual.

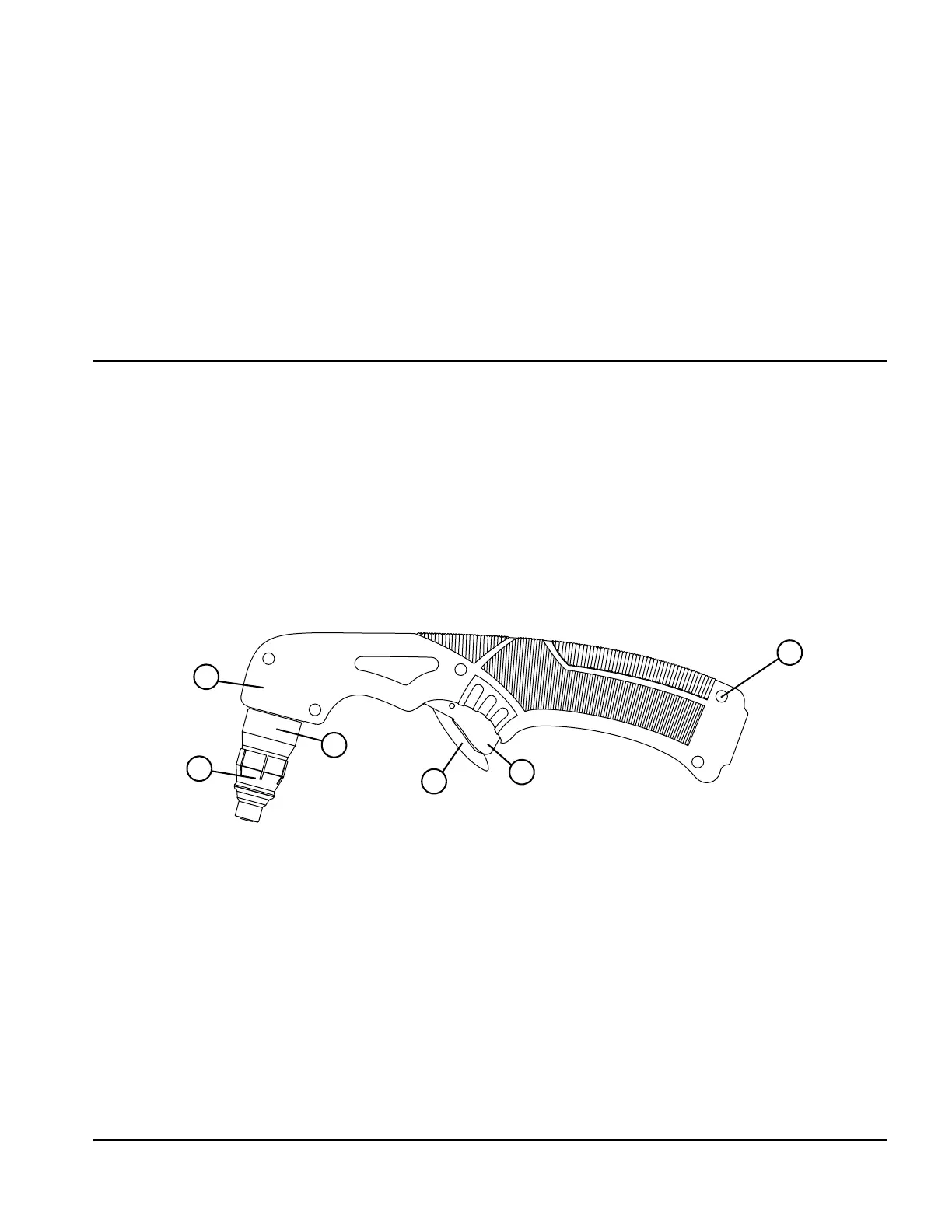

Hand torch components
1
2
3
4
5
6
1
Handle
2
Deflector
3
Retaining cap
4
Safety catch
5
Trigger (red)
6
Screws (5)

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
