Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 195
7 – Torch Component Replacement
Replace the start switch
1. Complete the following procedures:
a. Set the power switch to OFF (O), and disconnect the power cord from the power source.
b. Remove all components from the torch. See Remove the handle on page 187.

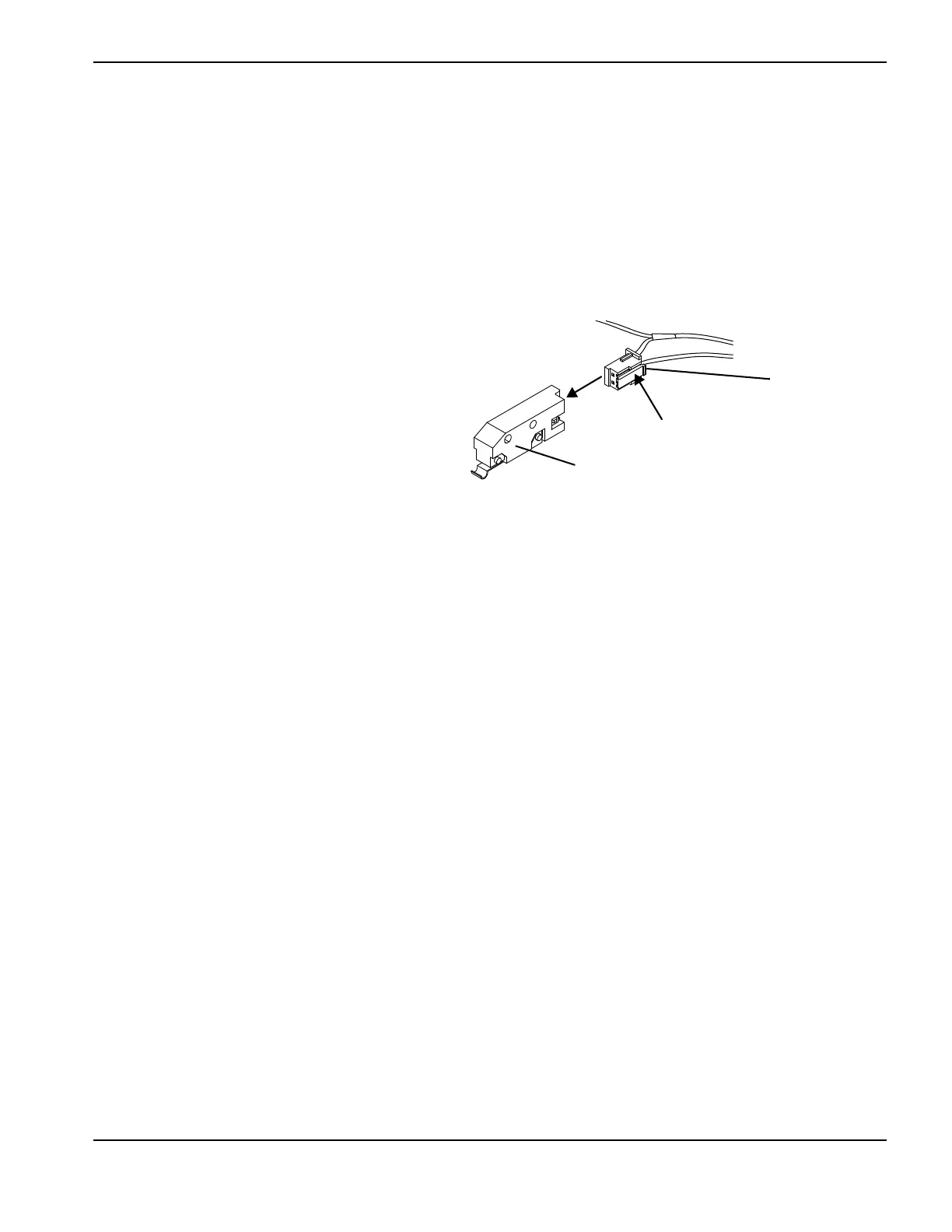

2. Disconnect the old start switch by pushing on the
tab and pulling the start switch away from the
connector.
3. Connect the new start switch by pushing the
mating plug into the socket.
4. Complete the following procedures:
a. Install all of the torch components that you
removed. See Install the handle on
page 190.
b. Reconnect the power cord, and set the power switch to ON (I).
Kit Description
428162 Kit: Torch start switch
Tab
Start switch

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
