Hypertherm Powermax30 AIR Service Manual

Powermax30 AIR Service Manual 808850 199
7 – Torch Component Replacement
9. Connect the cap-sensor switch and start switch.

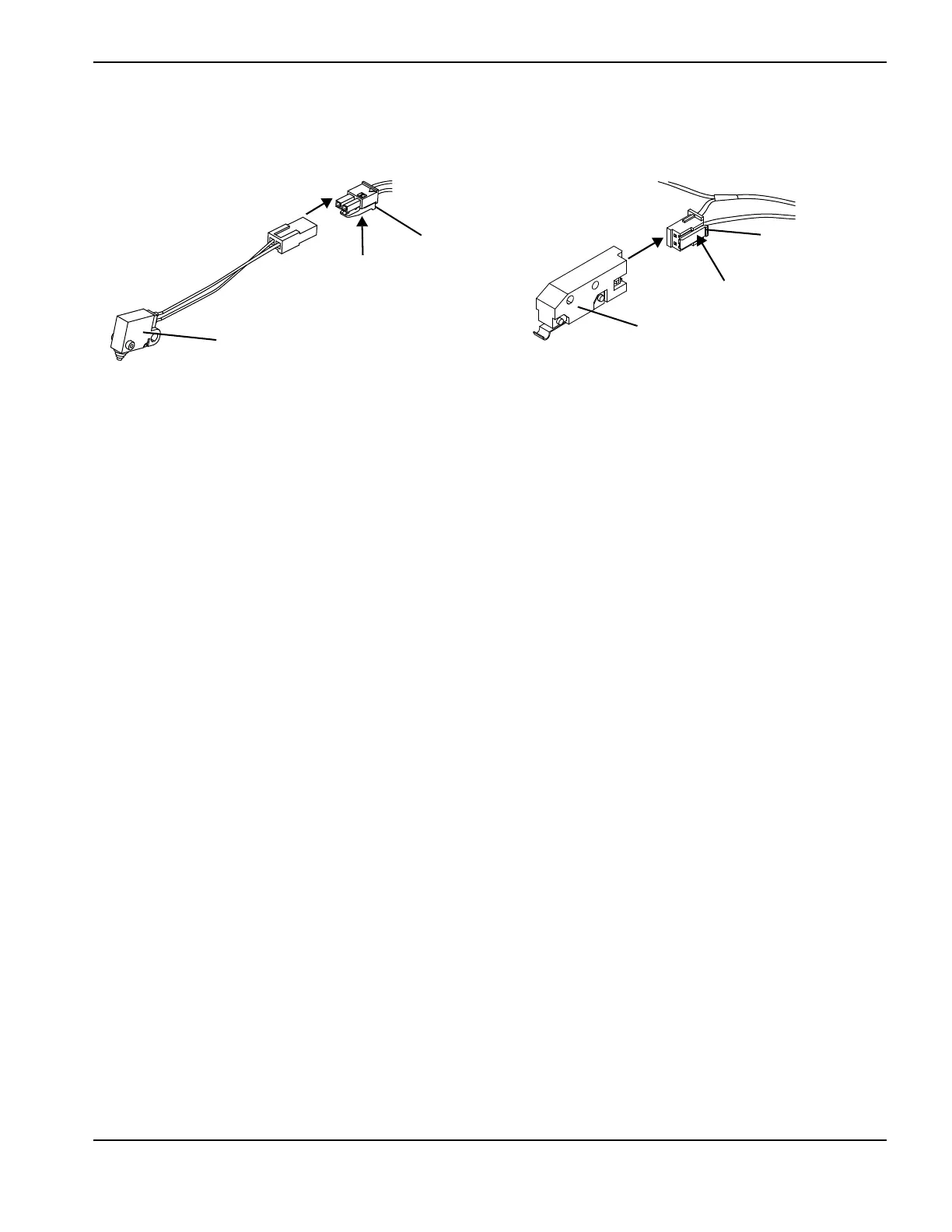

Figure 107
10. Complete the following procedures:
a. Install all of the torch components that you removed. See Install the handle on page 190.
b. Reconnect the power cord, and set the power switch to ON (I).
Cap-sensor switch
Tab
Tab
Start switch

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
