Hypertherm Powermax30 AIR Service Manual

74 Powermax30 AIR Service Manual 808850
5 – Troubleshooting and System Tests

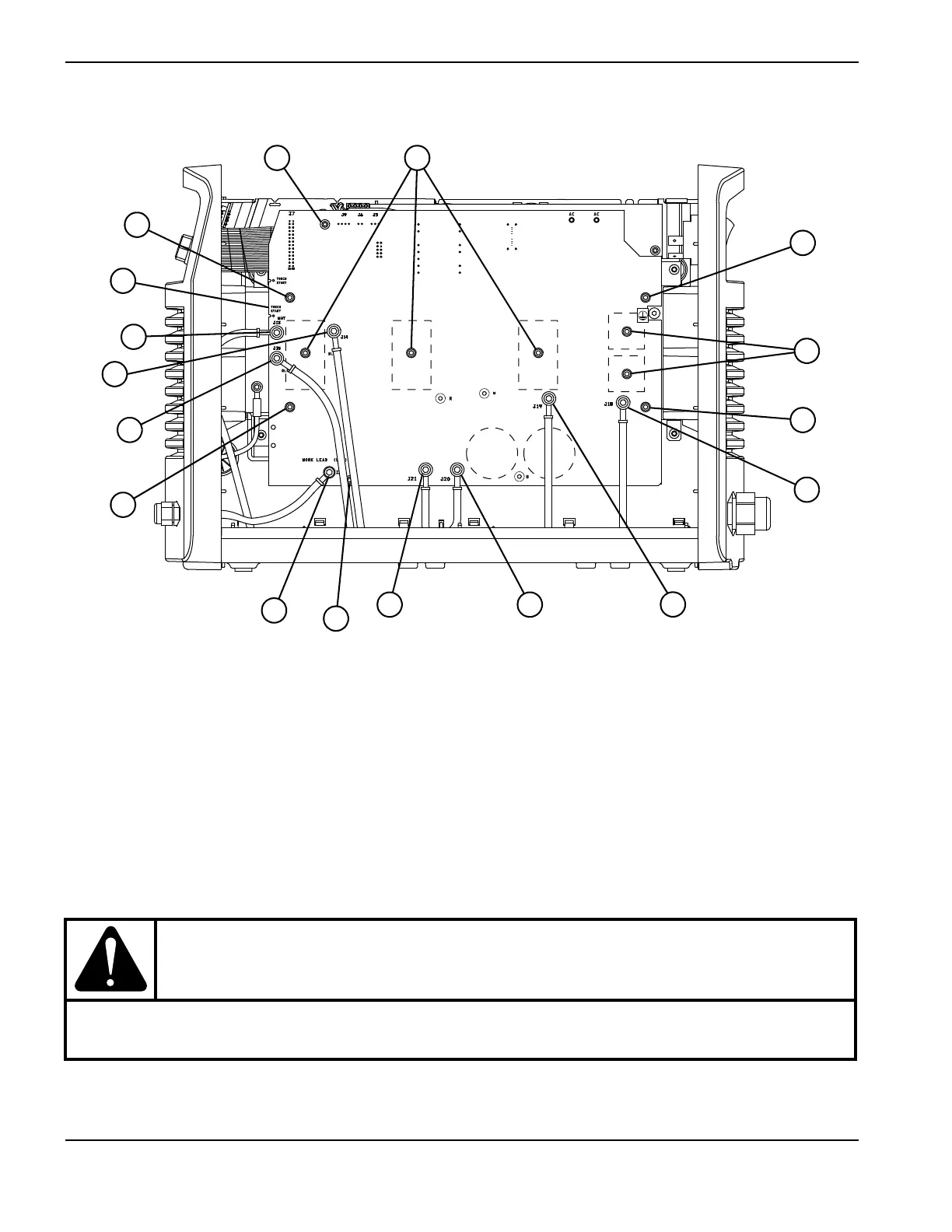

Figure 6 – Back of the power board
WARNING!
Voltages of up to 50 VDC continue to be present on the DC bus for at least 30 seconds after
disconnecting the input power. Allow bus voltages to dissipate before performing any tests.
WORK LEAD (BLK)
AC AC
R
w
TORCH
START
BLK
BLK
B
TORCH
START
1
2
4
3
2
2
1
2
11
12
13
5
6
7
8 9
1 0
1
Retaining screw (2)
2
Heatsink assembly screw (4)
3
Torch start and cap-sensor (J12)
4
J13
5
J14
6
J15
7
Work lead connector (J22)
8
J21
9
J20
10
J19
11
J18
12
Input diode bridge screws (2)
13
IGBT screws (3)

Hypertherm Powermax30 AIR Specifications

General

Built-in Air Compressor	Yes
Output Voltage	83 VDC
Input Voltage	120-240 V
Current Output	15–30 A
Cutting Thickness	Up to 10 mm (3/8 in) recommended cut
Gas Supply	Built-in air compressor
Operating Temperature	-10°C to +40°C (+14°F to +104°F)
