IAI EC-RR6*AH series User Manual

2.3 Installation of slider type
2-9
2. Installation

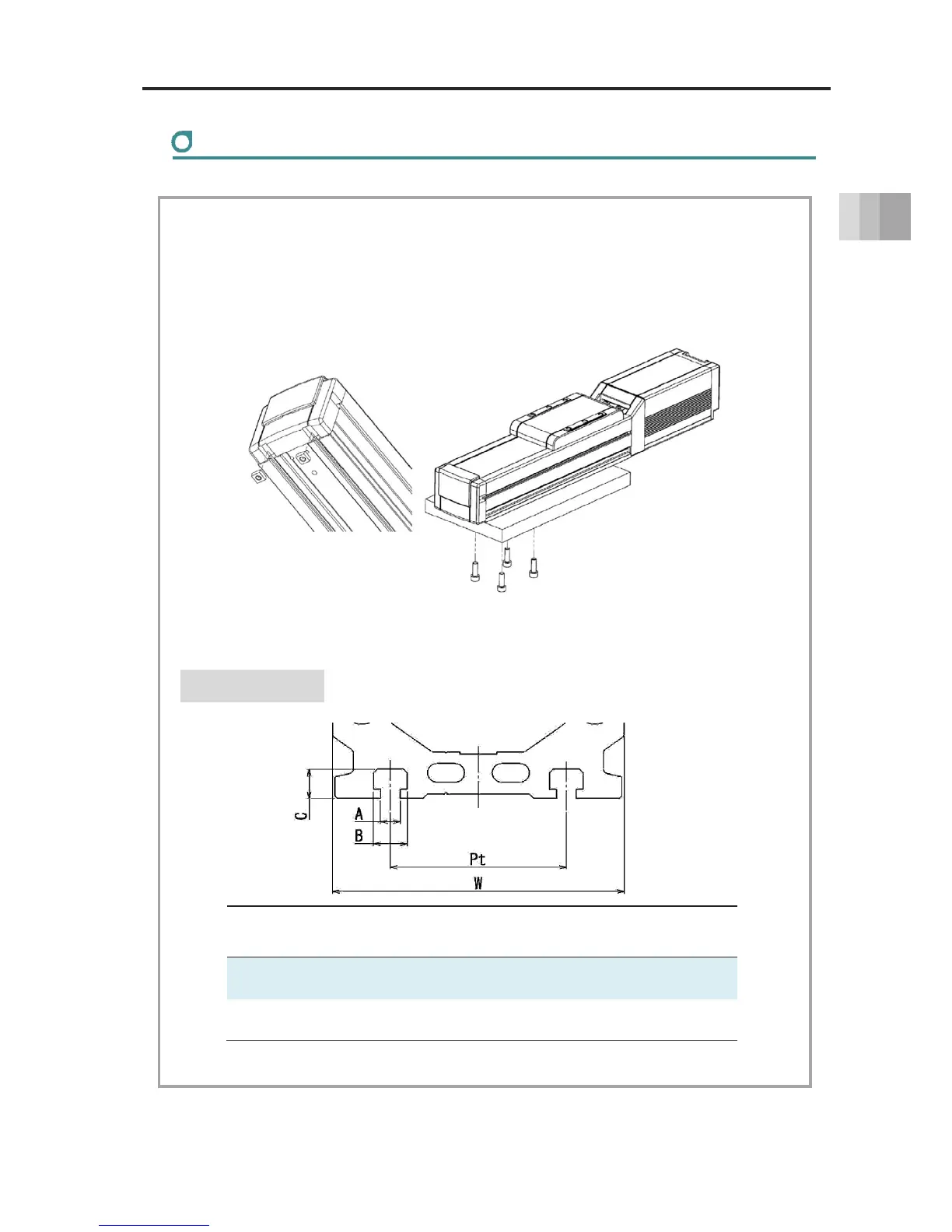

Body mounting
[When using the T-slot on the base bottom]
The unit has a T-slot at the bottom of the base for mounting.
Insert a square nut into the T-slot and fix it from the back.
→ For details regarding the position and dimensions,
refer to "Chapter 9 External Dimensions".
T-slot dimensions
Type W Pt A B C
EC-S6 63mm 38mm 4.3mm 7.3mm 6.3mm
EC-R7 73mm 46mm 5.3mm 8.5mm 8.5mm
