2.7 Installation of high rigidity radial cylinder type
2-63
2. Installation
Mounting with oscillation
[Installation orientation for oscillation]
● We recommend vertical mounting for oscillation.
When oscillation is performed with horizontal mounting, the product's self-weight causes
moment loads to be applied to the joint, increasing the sliding friction on the joint and leading
to thrust loss.
As well, note that sliding in the joint may cause wear on the bracket.

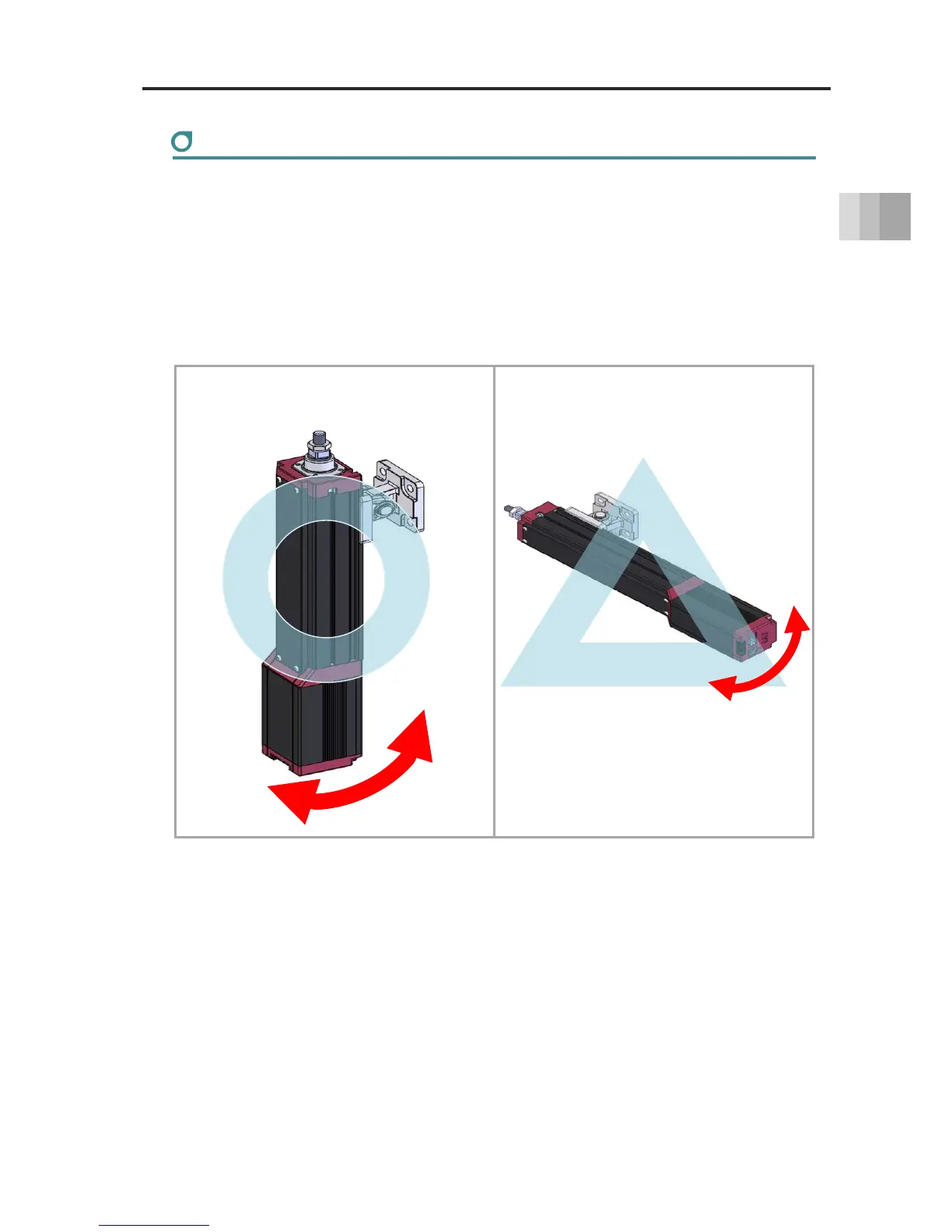

Vertical installation Horizontal installation
