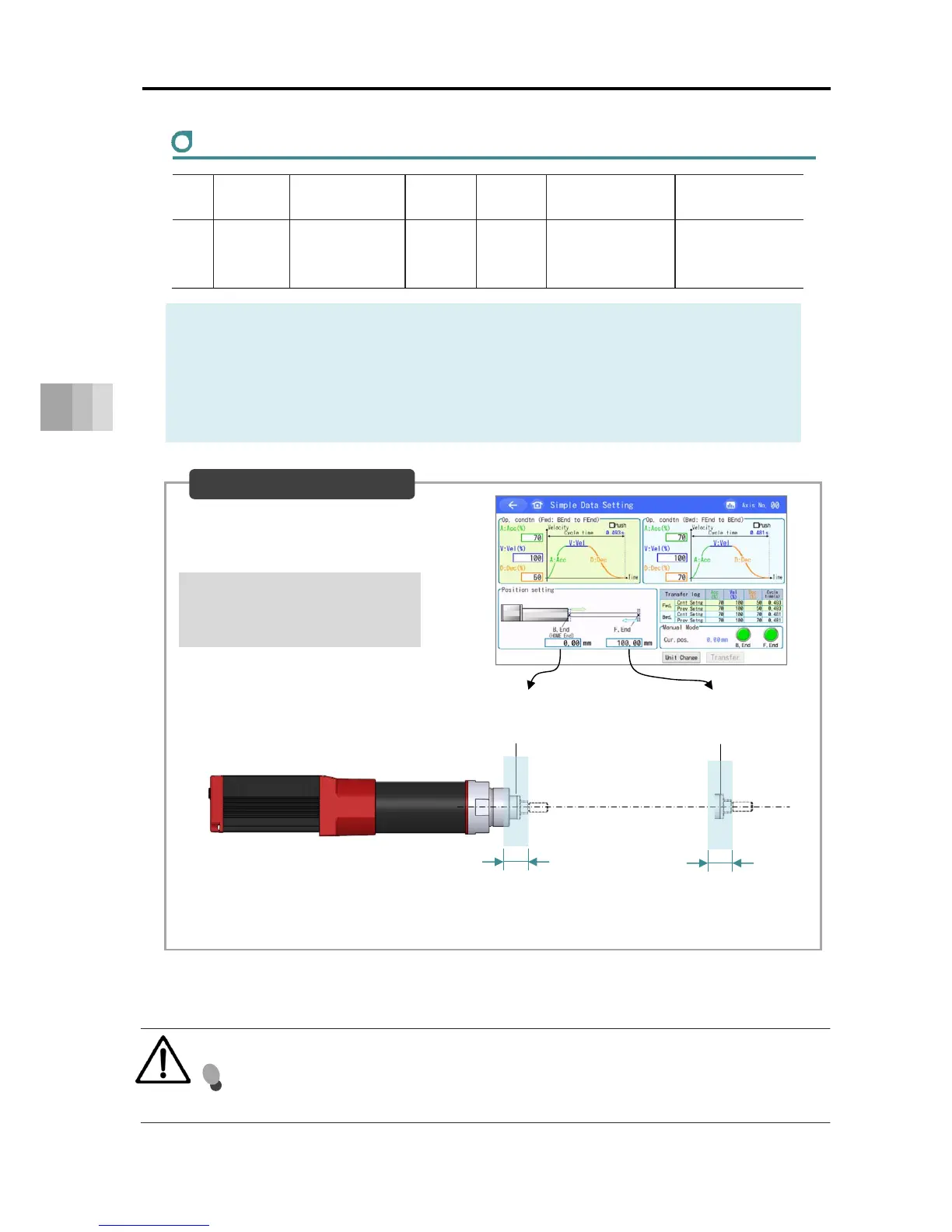

6.4 Parameter function descriptions
6-7
6. Parameters
Parameter No.2: Auto switch "LS" signal detection range adjustment
No.
Category
Name
Symbol Unit Input range
Default setting
at shipping
2 A
Auto switch
"LS" signal
detection
INP mm 0.01 to 9999.99 0.10
● Sets the backward complete/forward complete ON trigger range relative to the
backward end/forward end.
● When the ELECYLINDER enters the detection range, the backward complete or
forward complete signal turns ON.
● The minimum setting unit is 0.01mm.
The LS signal detection range for
the conditions below is
shown in the figure.
Backward end: 0.00mm
Forward end: 100.00mm
Parameter No.2 : 0.10mm
Caution
A value smaller than the minimum resolution cannot be set.
Minimum resolution [mm/p] = ball screw lead [mm/r] ÷ 800 [p/r]
Backward end
0.00mm
Forward end
100.00mm
[LS0 detection range]
-0.10 to 0.10mm
[LS1 detection range]
99.90 to 100.10mm
Configuration example
