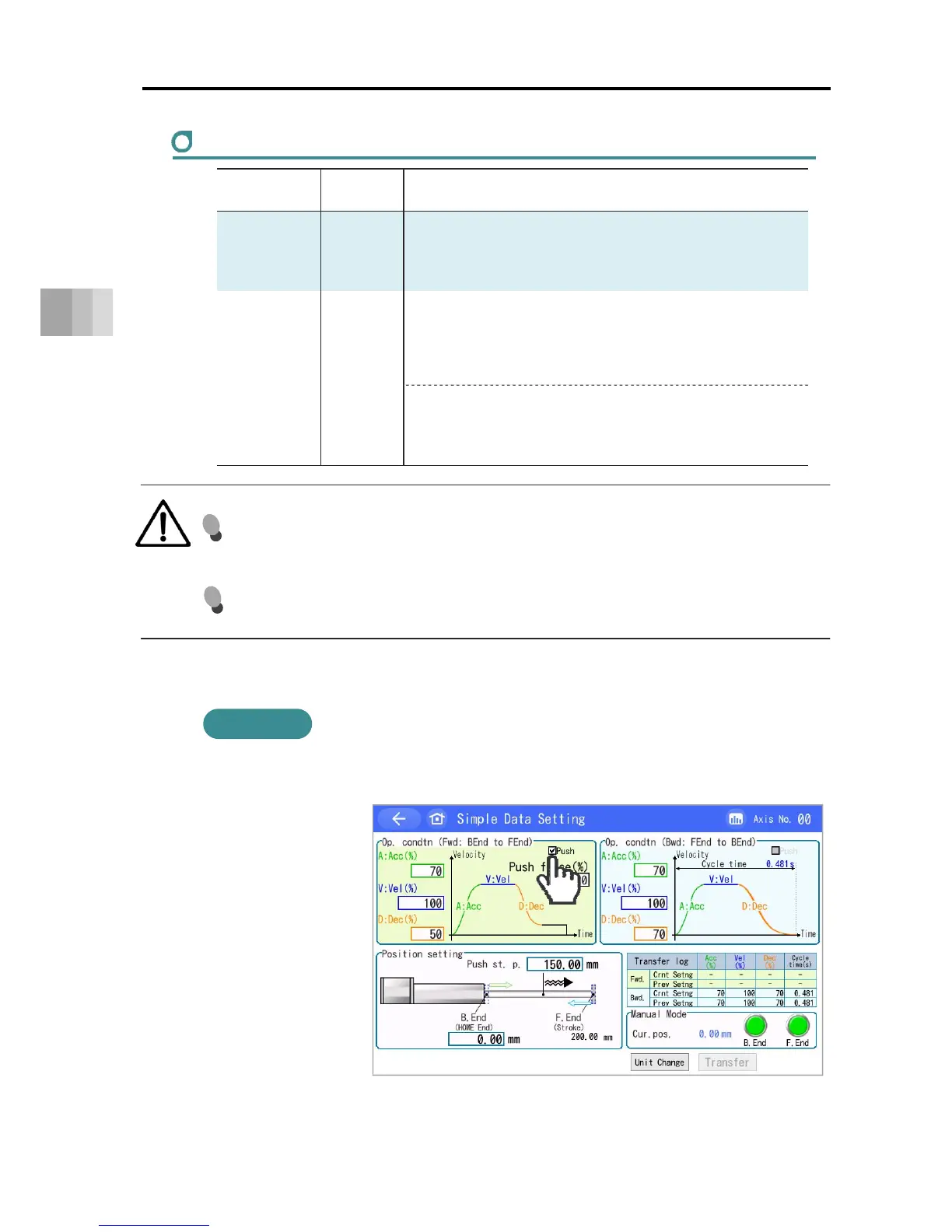

4.3 Setting/adjustment of operating conditions (AVD)
4-9
4. Operation
Pressing operation setting
Setting item Unit Explanation
Pressing
starting point
mm
The position where pressing operation starts.
Enter as the distance from the home position.
Entries can be made in increments of 0.01mm.
Pressing
force
%
or
N
The current limit value during the pressing operation.
Set between 20 and 70%.
[Switch units] can be used to input values in N units.
The pressing speed is 20 mm/s.
If [V: Velocity] is set to 20mm/s or below,
pressing will take place at the speed of [V: Velocity].
Caution
The pressing force displayed in N units serves as a guideline.
→ Refer to "Pressing force and current limit value relationship" on pages
1-11/17/23/29/34/39/44/49
When the pressing speed is 20mm/s or less, the pressing force will become unstable,
and failure to operate normally is possible.
Check [Press].
The screen will switch to the pressing operation window.
Action
1
