2.6 Installation of radial cylinder type
2-46
2. Installation
Mounting with oscillation

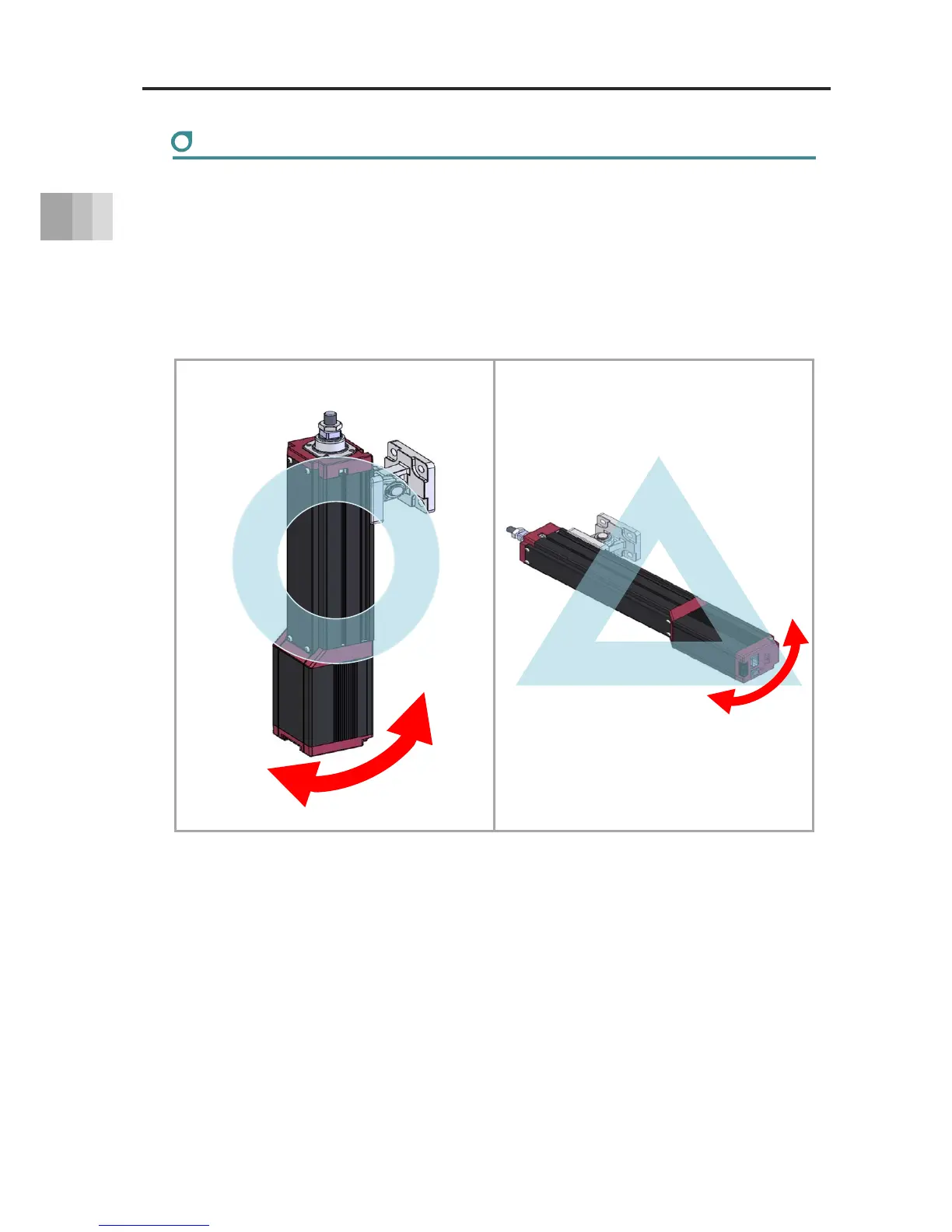

[Installation orientation for oscillation]
● We recommend vertical mounting for oscillation.
When oscillation is performed with horizontal mounting, the product's self-weight
causes moment loads to be applied to the joint, increasing the sliding friction on the joint
and leading to thrust loss.
As well, note that sliding in the joint may cause wear on the bracket.
Vertical installation Horizontal installation
