2.4 Installation of high rigidity slider type
2-20
2. Installation

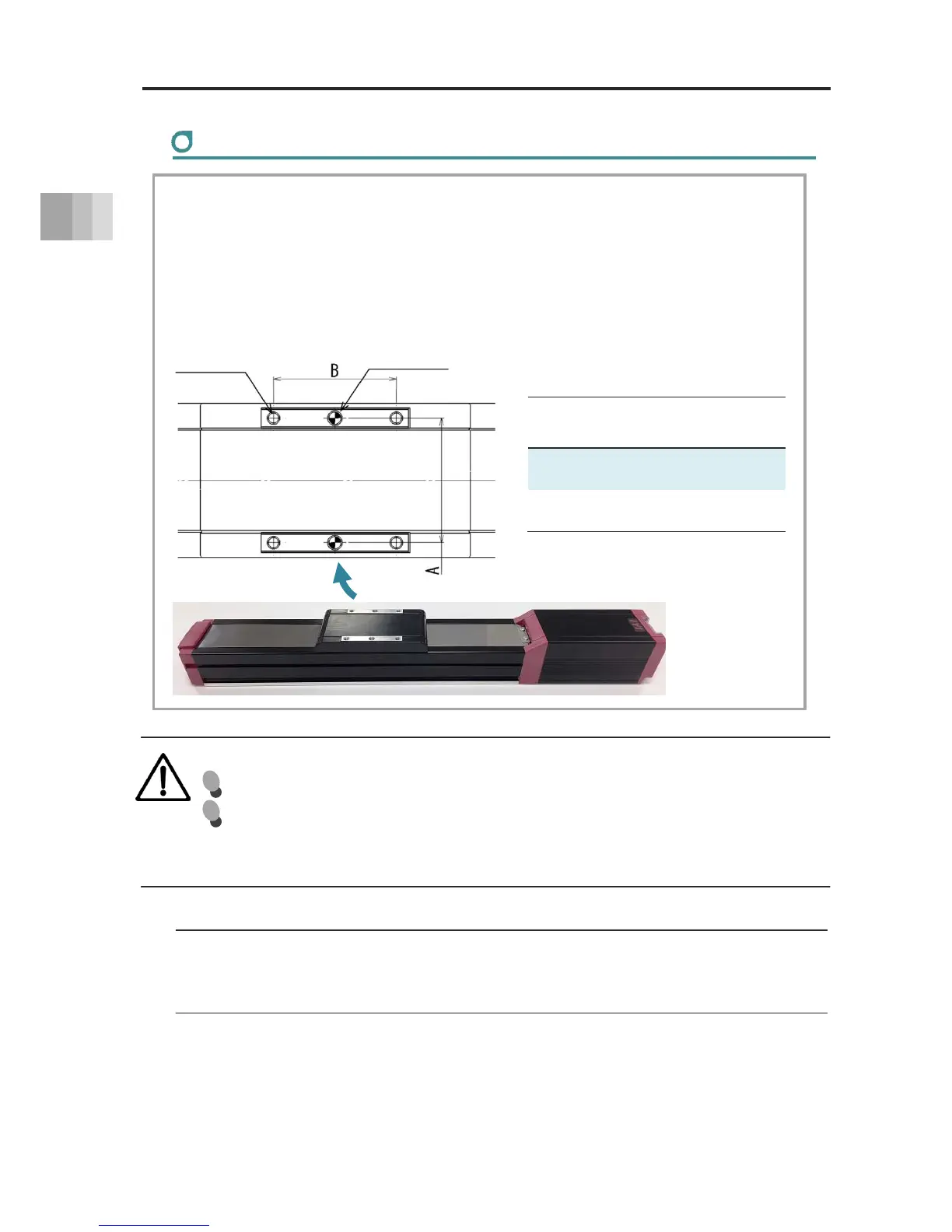

Mounting transported objects
● Use the tapped mounting holes on the top surface of the slider to fix transported objects.
● There are 2 reamed holes on the top surface of the slider.
Use these reamed holes if repeated attaching and detaching is required.
● If fine-tuning of perpendicularity, etc. is required, use one of the reamed holes
for this adjustment.
● Refer to the figure below for the screw-in depth and reamed hole depth.
Type A B
EC-S6□AH
EC-S6□H
51mm 50mm
EC-S7□AH
EC-S7□H
61mm 50mm
* Reamed hole pitch tolerance ±0.02
CAUTION
Be careful with regard to the length of the mounting bolt and positioning pin.
The use of screw-in depth greater than that of the tapped or reamed mounting
holes may damage the tapped hole or reduce the mounting strength of the
transported object, leading to decreased accuracy or unexpected accidents.
Notice
● The mounting bolts are to be prepared by the customer.
● The use of high-strength bolts of ISO-10.9 or higher is recommended.
4-M5 Depth 10 2-φ5 H7 Depth 5
