3.5 Wiring connections (for cables)
3-12
3. Wiring
24VDC power supply wiring
Connect the power wiring to the power I/O cable.
Connect the 24VDC power supply to the terminal block after terminal-processing
the 24V and 0V wires of the power I/O cable.
Connect the 24V wire (insulation color: red) to the +24V terminal of
the 24VDC power supply.
Connect the 0V wire (insulation color: black) to the 0V terminal of
the 24VDC power supply.
Wiring
color
Signal
abbreviation
Function
overview
Required specifications
Red 24V
Power supply
input
Power supply voltage: 24VDC ±10%
Power capacity: 3.5A, max. 4.2A
Black 0V Ground
When establishing an external stop switch, add a b-contact switch to the [red] terminal wiring.
This shuts off the 24V power supply in the stopped state (control/drive power OFF).
1
2

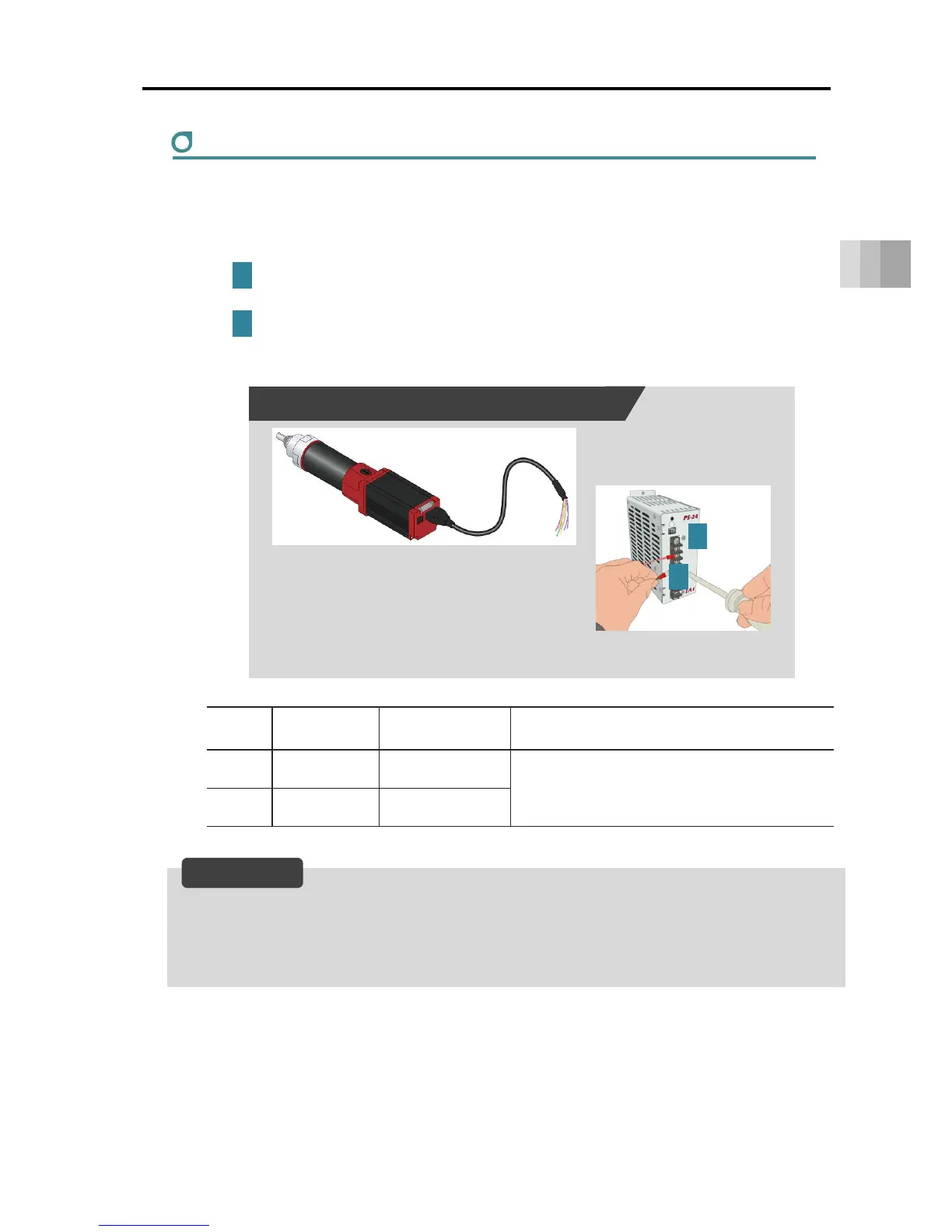

24VDC power supply connection diagram
24VDC power supply
ELECYLINDER/Power I/O cable
1
2
Reference
