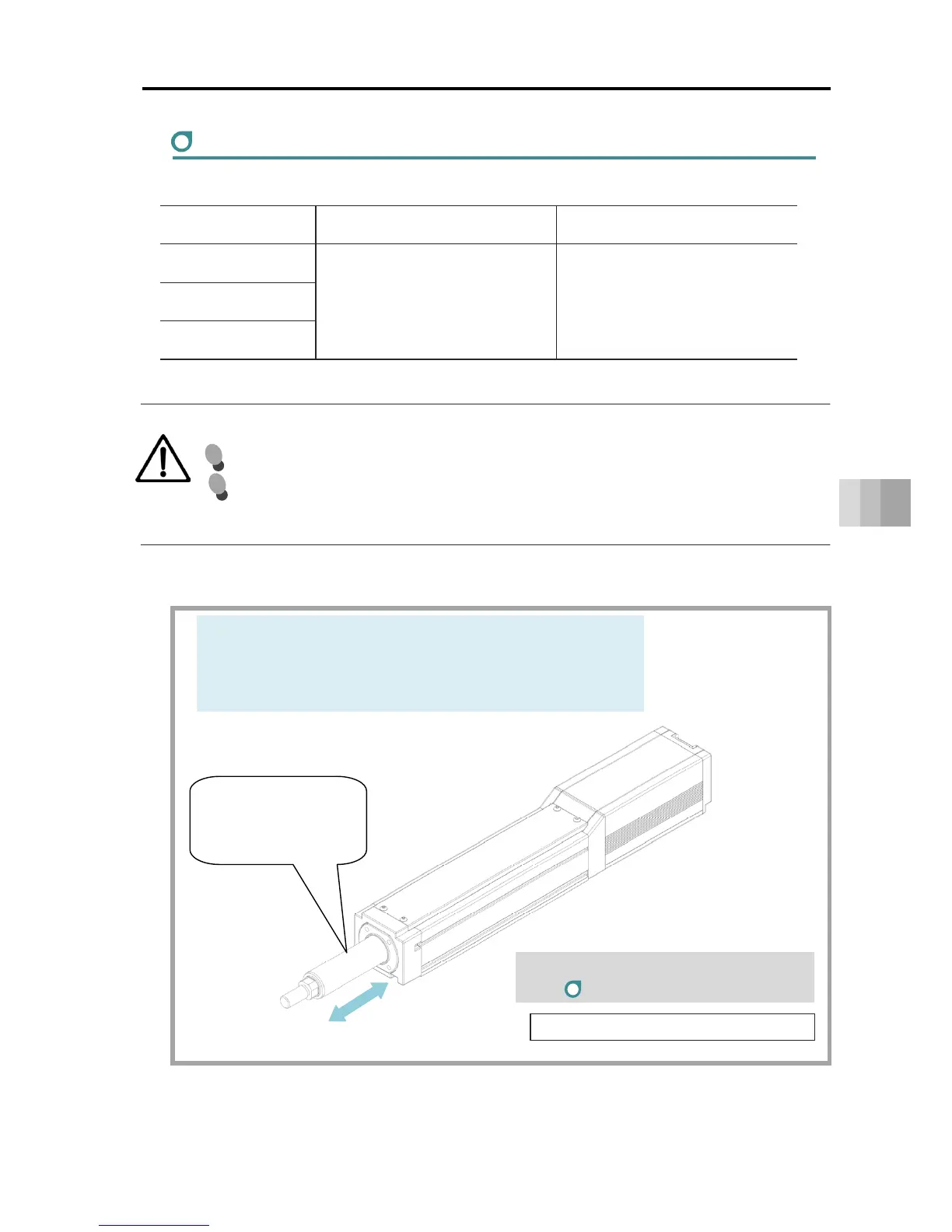

8.5 Greasing method
8-13
8. Maintenance and Inspection
Radial cylinder type
[1] Grease used: Use an equivalent product
Application
location
During maintenance
(recommended product)
Default (reference)
Rod sliding surface
Kyodo Yushi
Multemp LRL No.3
Kyodo Yushi
Multemp LRL No.3
Ball screw
Guide
Caution
Never use fluorine-based grease.
Mixing with lithium-based grease not only reduces the performance of the grease, it may
even cause damage to the ELECYLINDER.
[2] Greasing method: Rod sliding parts
(1) Pull the rod towards the non-motor side.
(2) Clean the rod sliding surface and apply the grease by hand.
(3) Move the rod full-stroke to apply the grease thoroughly.
Apply to rod sliding
surface
(0.5 to 1.0cc)
Rod sliding parts greasing method
* To release the brake,
refer to
Brake release method
(page 3-10)
