2.5 Installation of rod type
2-22
2. Installation

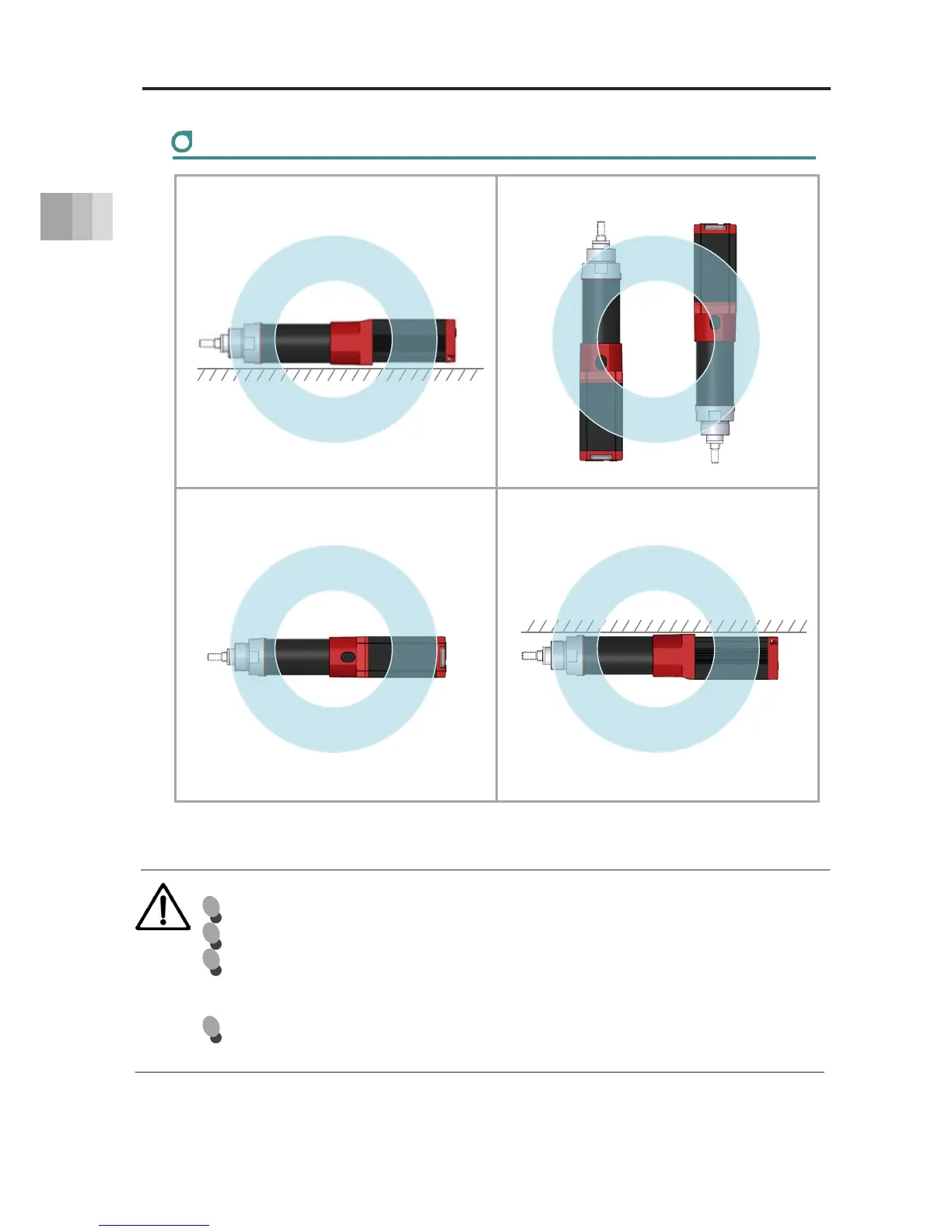

Mounting orientation
Horizontal installation Vertical installation
Horizontal lateral installation Horizontal ceiling mount installation
Caution
Excessive greasing may cause the grease to drip from the rod.
When installing the unit vertically, keep the motor on top to the greatest extent possible.
If the motor is installed on the bottom, the grease may separate due to long-term disuse,
causing the base oil to flow into the motor part and leading to controller or motor/encoder
breakdown.
If the motor is installed on the top, cap the teaching port.
Clogging with foreign matter may lead to a breakdown.
Type: EC-R6/R7
To Next Page
