2.6 Installation of radial cylinder type
2-34
2. Installation

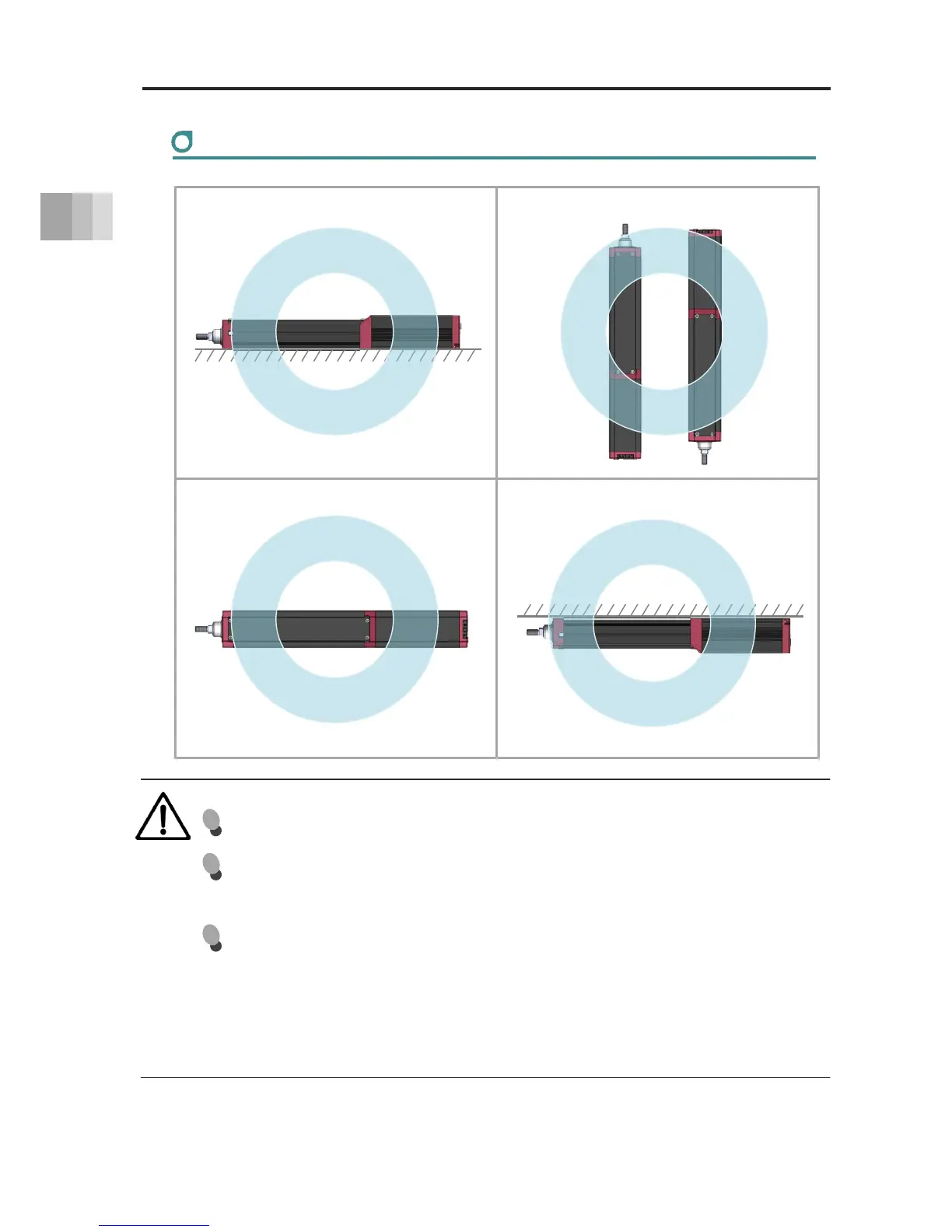

Mounting orientation
Horizontal installation Vertical installation
Horizontal lateral installation Horizontal ceiling mount installation
Caution
When installing the unit vertically, keep the motor on top to the greatest extent
possible.
If the motor is installed on the bottom, the grease may separate due to long-term disuse,
causing the base oil to flow into the motor part and leading to controller or motor/encoder
breakdown.
If the motor is installed on the top, cap the teaching port.
Clogging with foreign matter may lead to a breakdown.
Sometimes base oil separates from the grease due to the operating environment,
mounting orientation, or operating conditions, and leaks from the inside of
ELECYLINDER to the exterior. Protect the peripheral equipment if base oil adhesion
negatively affects them.
Type: EC-RR6/RR7
