4.2 Teaching tool connections and testing operation
4.3 Setting/adjustment of operating conditions (AVD)
4-4
4. Operation
Touch the [FEnd] (forward) button or [BEnd] (backward) button.
The ELECYLINDER will move toward the forward or backward end.
Releasing the controls during operation will cause the unit to slow to a stop.
4.3 Stop position/operating conditions (AVD) setting/adjustment
The stop position and operating conditions are set for the ELECYLINDER at shipping.

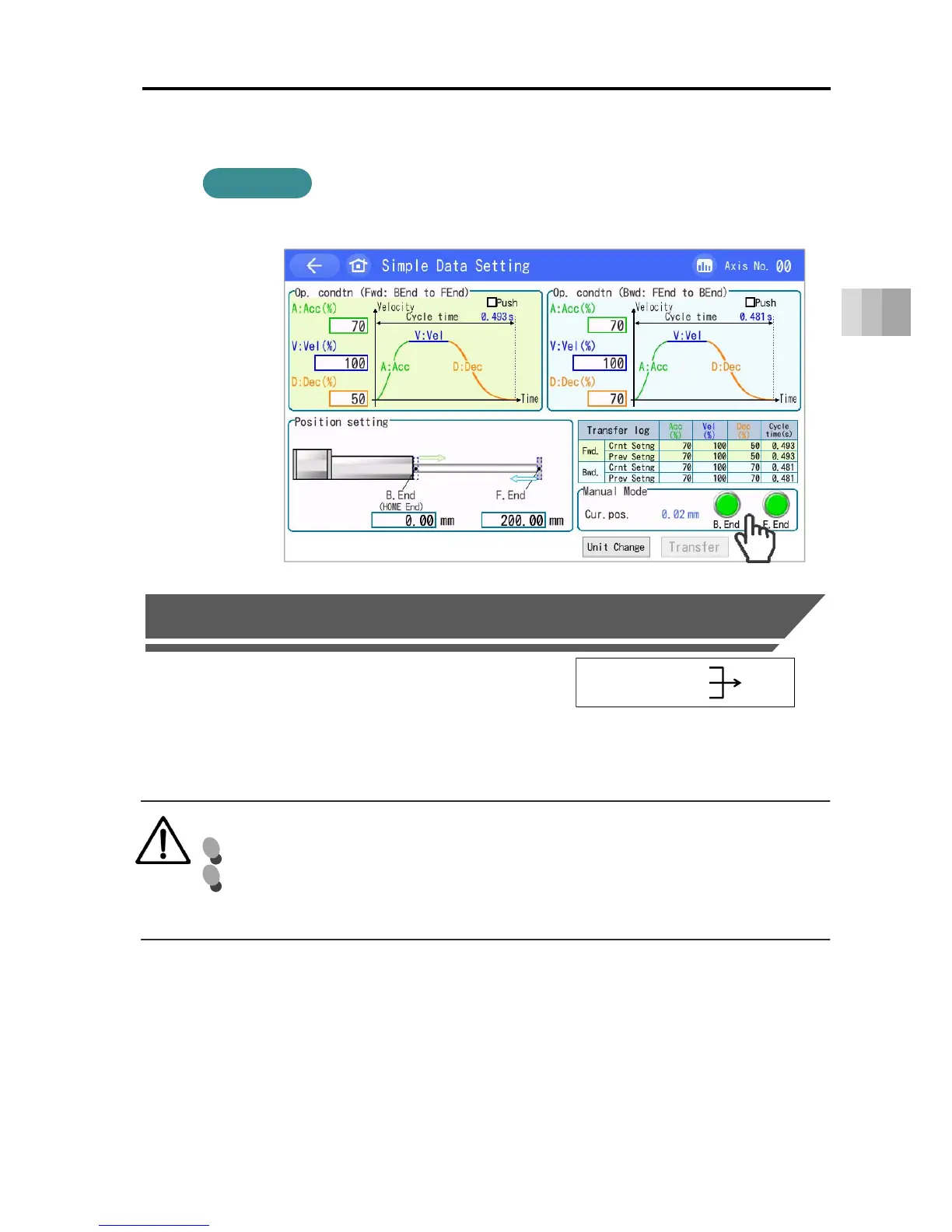

The Simple Data Setting screen can be used to adjust the stop position and operating conditions.
Caution
Be sure to touch the [Transfer] key after configuring or adjusting data.
The data will return to the previous state if the screen is changed without pressing
[Transfer].
Moreover, the [Manual operation] button will not work if data is not transferred.
4
Action
A:Acceleration
V:Velocity
D:Deceleration
加速度
速度
減速度
AVD
