2.7 Installation of high rigidity radial cylinder type
2-60
2. Installation
Mounting transported objects

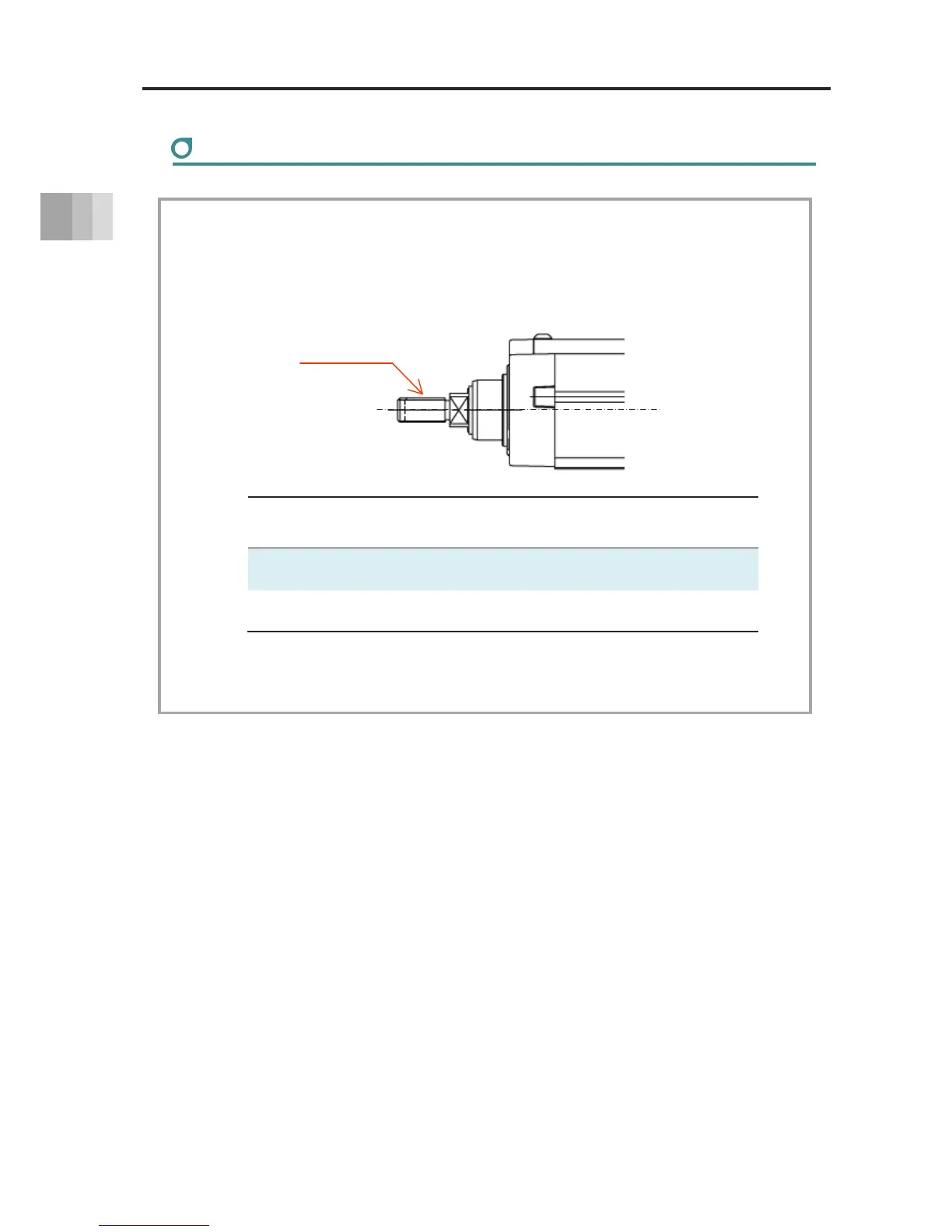

[When using the rod tip adapter male thread]
● Remove the male thread cap.
● Transported objects can be secured using the male thread of the rod tip adapter.
* Fix the rod tip bracket width across flats with a wrench, etc., to prevent loads from being
applied to the rod.
Type
Male thread dimensions
Tightening
torque
EC-RR6□AH
EC-RR6□H
M10 × 1.25, effective thread length
20.0mm
30.00N･m
EC-RR7□AH
EC-RR7□H
M14 × 1.5, effective thread length
27.5mm
35.00N･m
Male thread
