9.2 High rigidity slider type (EC-S□□AH)
9-3
9. External Dimensions

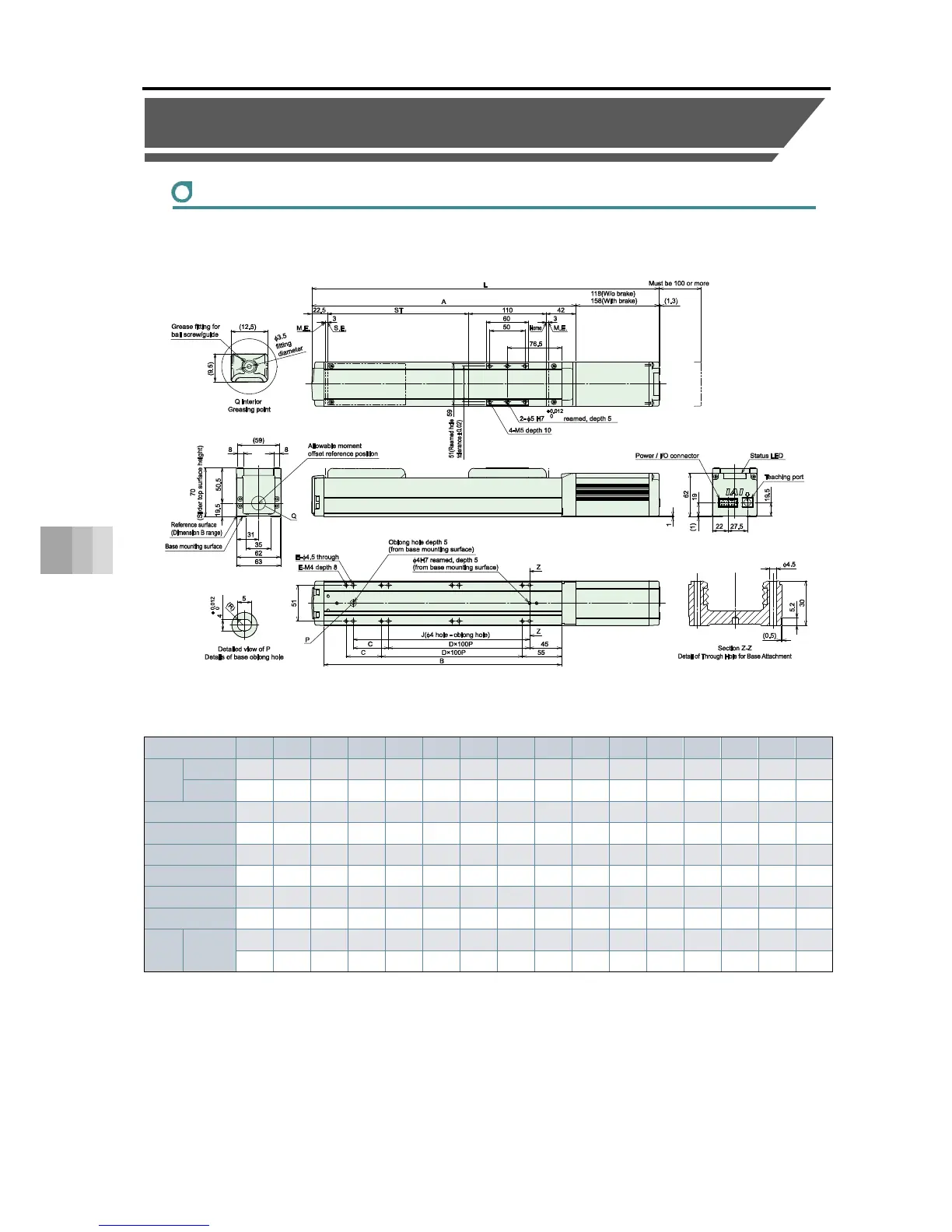

9.2 High rigidity slider type external dimensions (EC-S□□AH)
EC-S6□AH
M.E.: Mechanical end, S.E.: Stroke end
ST: Stroke
Stroke 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800
L
W/o Brake 342.5 392.5 442.5 492.5 542.5 592.5 642.5 692.5 742.5 792.5 842.5 892.5 942.5 992.5 1042.5 1092.5
With Brake 382.5 432.5 482.5 532.5 582.5 632.5 682.5 732.5 782.5 832.5 882.5 932.5 982.5 1032.5 1082.5 1132.5
A 224.5 274.5 324.5 374.5 424.5 474.5 524.5 574.5 624.5 674.5 724.5 774.5 824.5 874.5 924.5 974.5
B 186.5 236.5 286.5 336.5 386.5 436.5 486.5 536.5 586.5 636.5 686.5 736.5 786.5 836.5 886.5 936.5
C 0 50 0 50 0 50 0 50 0 50 0 50 0 50 0 50
D 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8
E 4 6 6 8 8 10 10 12 12 14 14 16 16 18 18 20
J 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850
Weight
(kg)
W/o Brake 2 2.2 2.4 2.6 2.9 3.1 3.3 3.5 3.8 4 4.2 4.4 4.7 4.9 5.1 5.3
With Brake 2.3 2.5 2.7 2.9 3.2 3.4 3.6 3.8 4.1 4.3 4.5 4.7 5 5.2 5.4 5.6
(Unit: mm)
