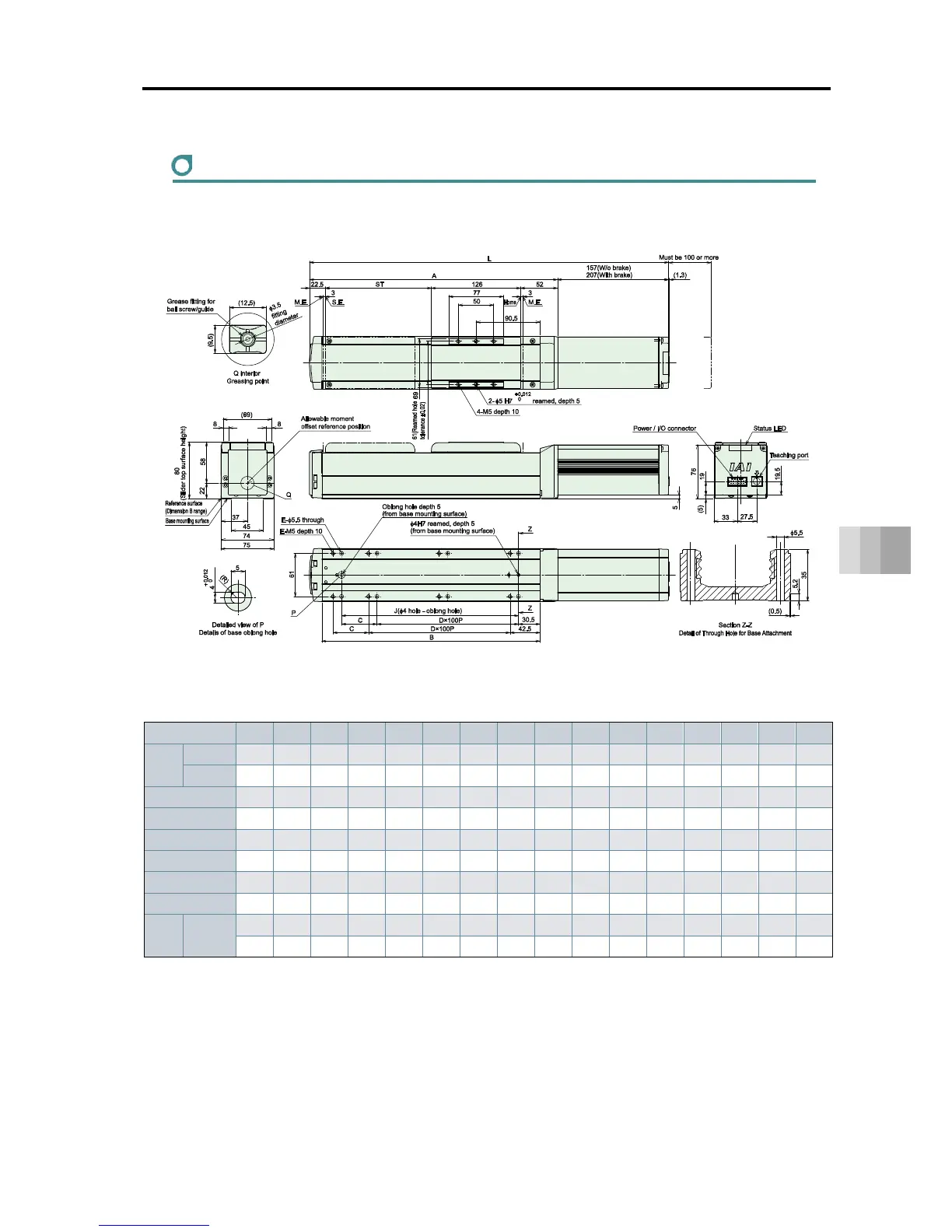

9.2 High rigidity slider type (EC-S□□AH)
9-4
9. External Dimensions
EC-S7□AH
M.E.: Mechanical end, S.E.: Stroke end
ST: Stroke
Stroke 50 100 150 200 250 300 350 400 450 500 550 600 650 700 750 800
L
W/o Brake 407.5 457.5 507.5 557.5 607.5 657.5 707.5 757.5 807.5 857.5 907.5 957.5 1007.5 1057.5 1107.5 1157.5
With Brake
457.5 507.5 557.5 607.5 657.5 707.5 757.5 807.5 857.5 907.5 957.5 1007.5 1057.5 1107.5 1157.5 1207.5
A
250.5 300.5 350.5 400.5 450.5 500.5 550.5 600.5 650.5 700.5 750.5 800.5 850.5 900.5 950.5 1000.5
B 208.5 258.5 308.5 358.5 408.5 458.5 508.5 558.5 608.5 658.5 708.5 758.5 808.5 858.5 908.5 958.5
C 50 0 50 0 50 0 50 0 50 0 50 0 50 0 50 0
D 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9
E
6 6 8 8 10 10 12 12 14 14 16 16 18 18 20 20
J 150 200 250 300 350 400 450 500 550 600 650 700 750 800 850 900
Weight
(kg)
W/o Brake
3.9 4.1 4.4 4.7 4.9 5.2 5.5 5.7 6 6.3 6.5 6.8 7.1 7.3 7.6 7.9
With Brake 4.4 4.6 4.9 5.2 5.4 5.7 6 6.2 6.5 6.8 7 7.3 7.6 7.8 8.1 8.4
(Unit: mm)
■ Dimensions and Mass by Stroke
