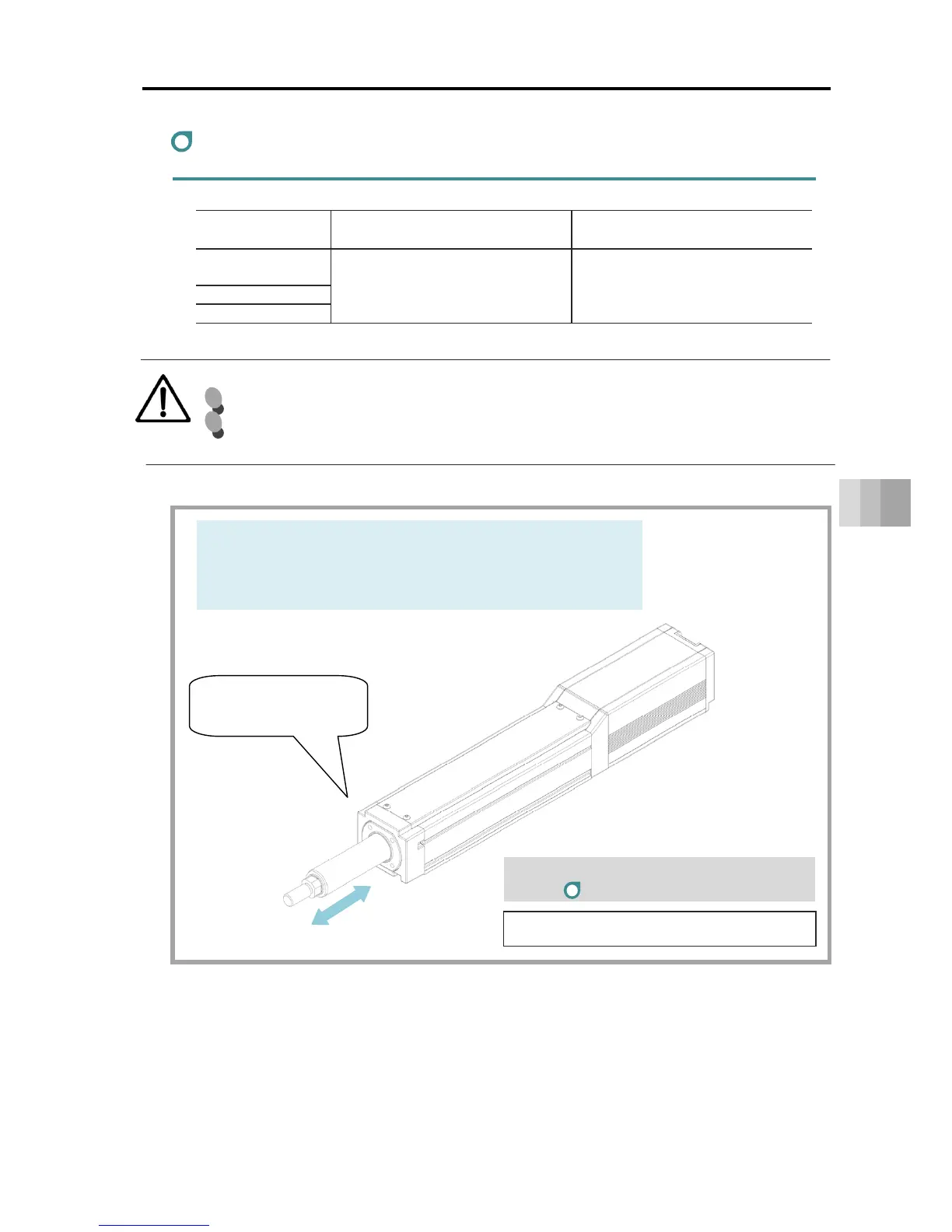

8.5 Greasing method
8-15
8. Maintenance and Inspection
High rigidity radial cylinder type (EC-RR□□AH),
High rigidity radial cylinder type (EC-RR□□H)
[1] Grease used: Use an equivalent product
Application
location
During maintenance
(recommended product)
Default (reference)
Rod sliding
surface
Kyodo Yushi/Multemp LRL No.3 Kyodo Yushi/Multemp LRL No.3
Ball screw
Guide
Caution
Never use fluorine-based grease.
Mixing with lithium-based grease not only reduces the performance of the grease, it may
even cause damage to the ELECYLINDER.
[2] Greasing method: Rod sliding parts
(1) Pull the rod towards the non-motor side.
(2) Clean the rod sliding surface and apply the grease by hand.
(3) Move the rod full-stroke to apply the grease thoroughly.
Apply to rod sliding surface
(0.5 to 1.0cc)
Rod sliding parts greasing method
* To release the brake,
refer to
Brake release method
(page 3-10)
