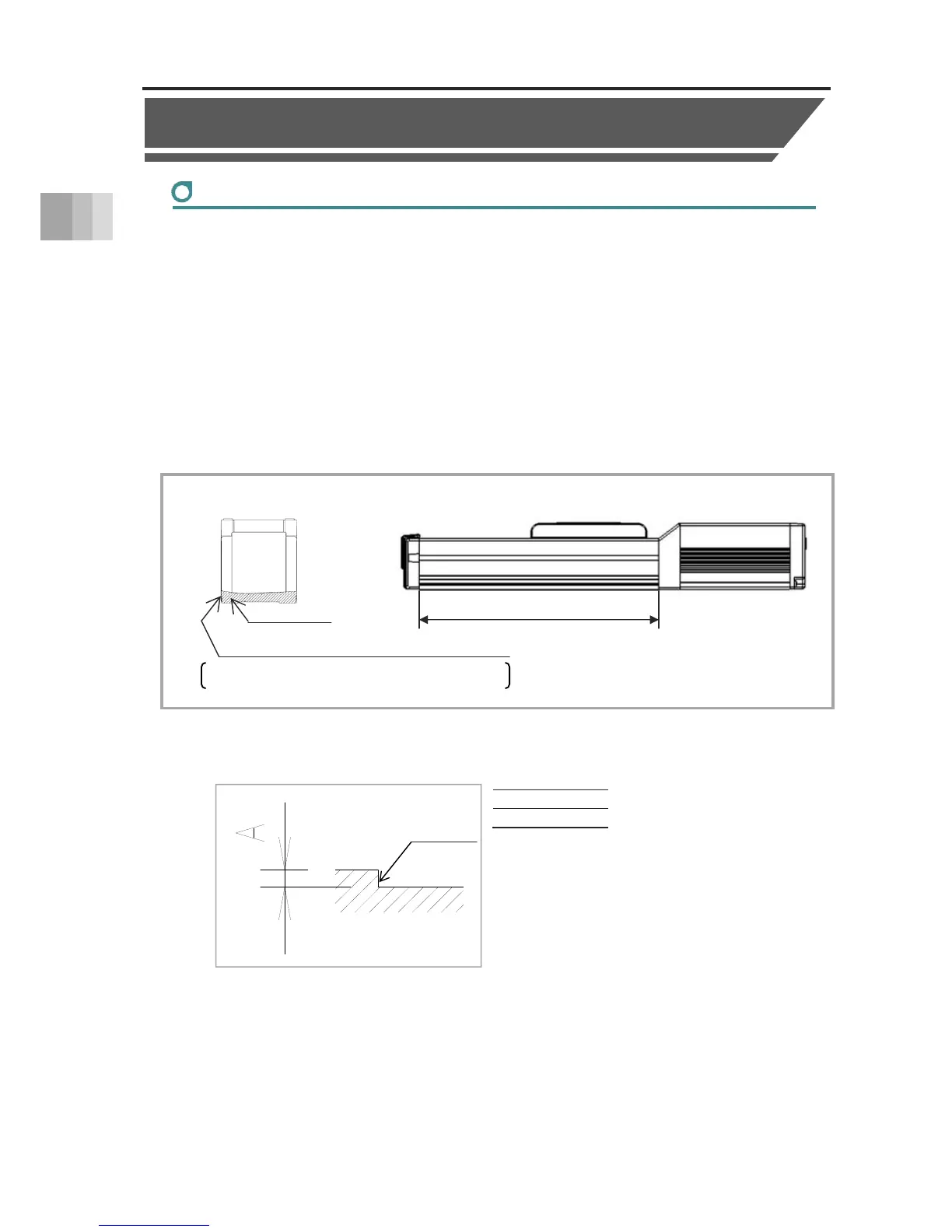

2.4 Installation of high rigidity slider type
2-14
2. Installation
2.4 Installation of high rigidity slider type
Installation surface
● The body mounting surface should be a machined surface or a plane with similar
accuracy, with flatness within 0.05mm/m.
● The mounting frame should have a structure rigid enough to prevent the generation
of vibration.
● Also consider the necessary space for maintenance work such as ELECYLINDER
replacement and inspection.
●The bottom surface and left side surface (viewed from motor opposite side) of the body base
serve as the reference surfaces for slider running accuracy.
Use these surfaces as the reference surfaces for mounting when running
accuracy is required.
When mounting using the side reference surface, machine the installation surface according to
the figure below.
A dimension
2 to 4mm
Reference surface effective range
Base bottom
Side surface
When viewed from the opposite side of the motor,
the left side surface is the reference surface
R0.3 or less
