8.6 How to replace components
8-17
8. Maintenance and Inspection
8.6 How to replace components

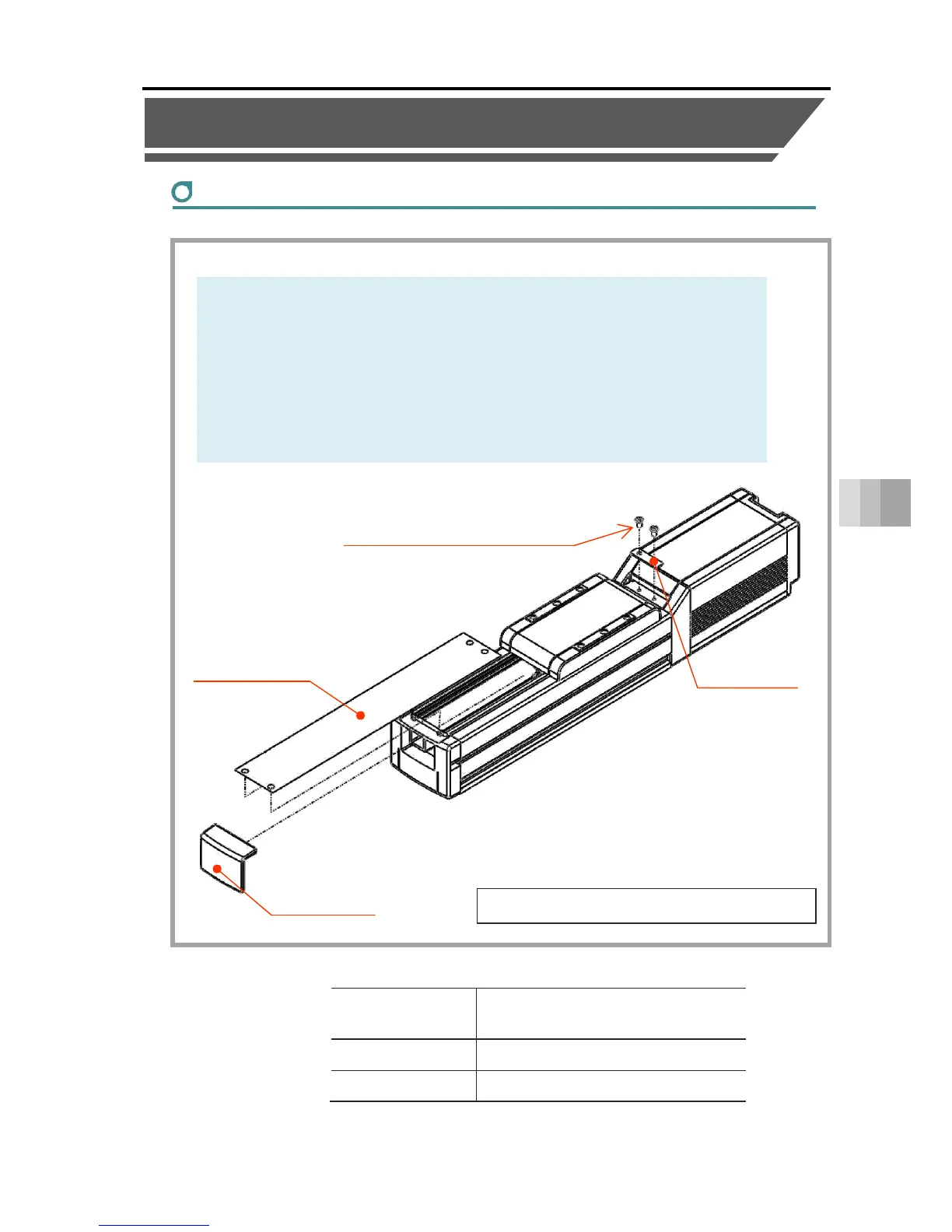

Stainless steel sheet replacement/adjustment
[EC-S6/S7]
(1) Remove the sheet clamp. (Refer to page 8-7 for the removal method)
(2) Loosen the screws and remove the sheet retainer.
(3) Pull out the old stainless steel sheet.
(4) Insert a new stainless steel sheet using the reverse procedure.
It should be inserted along the slider internal guide.
(5) Mount the sheet retainer.
(6) Secure with sheet clamp.
Body model Stainless steel sheet model
EC-S6 ST-EC-S6-*** (stroke)
EC-S7 ST-EC-S7-*** (stroke)
Sheet clamp
Stainless steel sheet
Cross-recessed pan screws x 2 pcs
(M3 x 5, tightening torque 0.41N･m)
Stainless steel sheet replacement method
Sheet retainer
