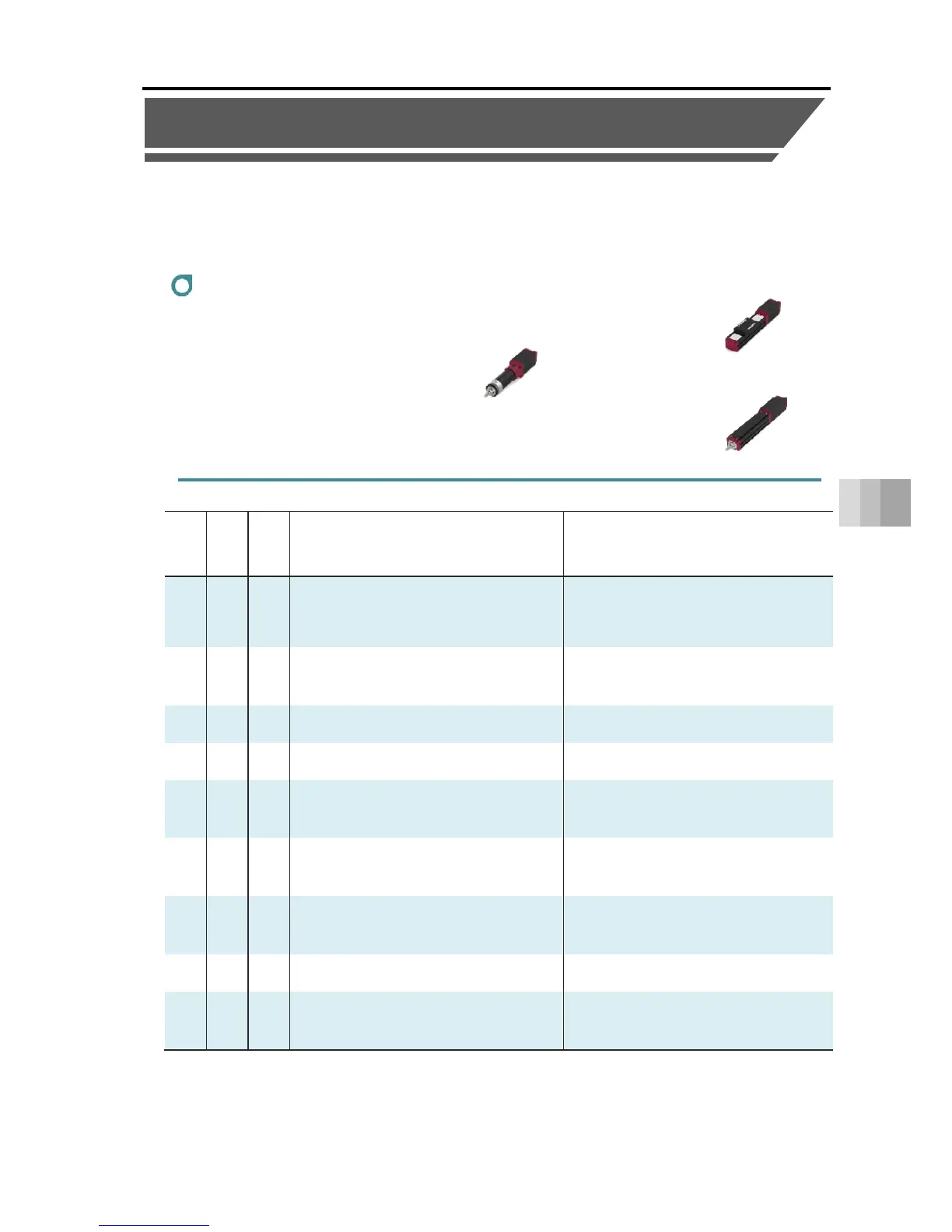

8.3 Visual inspection items
8-5
8. Maintenance and Inspection
8.3 Visual inspection items
Refer to "8.5 Greasing method" for detailed information about the greasing method.
Refer to "8.6 How to replace components" for detailed information about specific component
replacement and adjustment methods.
External visual inspection
S R RR Inspection items Maintenance work
○ ○ ○
Is abnormal noise or vibration
generated?
Refer to "7.3 Troubleshooting with no
alarm generated" for help.
○ ○ ○
Are ELECYLINDER mounting bolts
loose?
Tighten them further.
○ ○ ○
Is the cable scratched? Replace if the damage is severe.
○ ○ ○
Is the connector loose? Re-insert correctly.
○ ○ ○
Is grease dripping out?
(especially if vertically mounted)
Clean up any drips.
Replenish the grease.
－ ○ ○
Is the rod sliding surface grease
not lubricating well?
Wipe away the old grease,
then replenish with new grease.
－ ○ ○
Is there foreign matter or dust
adhered to the rod sliding surface?
Clean the rod sliding surface,
then replenish with new grease.
○ － －
Is the stainless steel sheet scratched? Replace the stainless steel sheet.
○ － －
Is the stainless steel sheet misaligned
or slack?
Adjust the alignment and hang.
S : Slider type, High rigidity slider type (EC-S□□AH),
High rigidity slider type (EC-S□□H)
R : Rod type
RR : Radial cylinder type,
High rigidity radial cylinder type (EC-RR□□AH),
High rigidity radial cylinder type (EC-RR□□H)
To Next Page
