3.1 System configuration
3-1
3. Wiring
3.1 System configuration

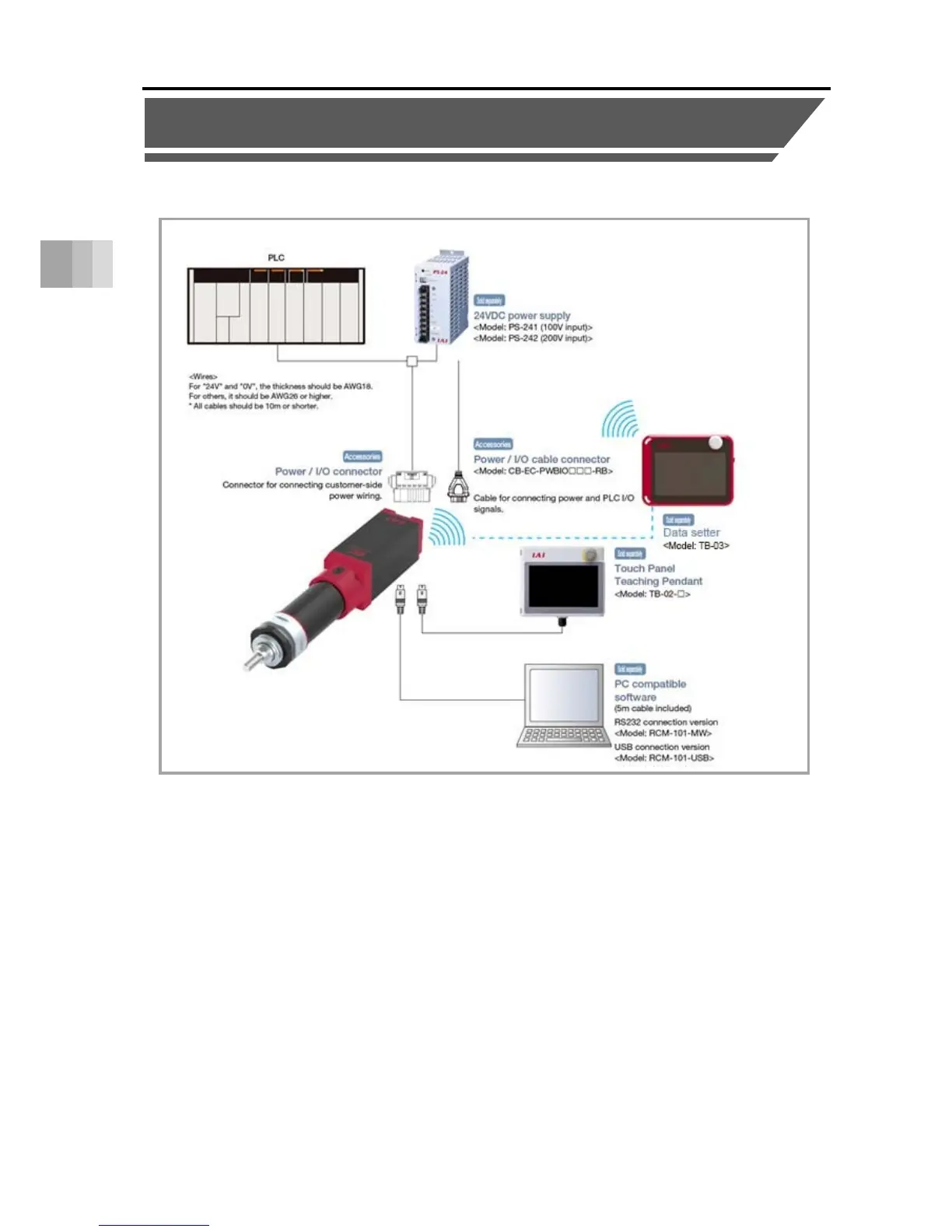

The following shows the system configuration.
Supply 24VDC to the ELECYLINDER and input a signal from a master device to the
ELECYLINDER.
This enables the ELECYLINDER to operate.
This manual introduces an example using a PLC connected as the master device.
