8.5 Greasing method
8-12
8. Maintenance and Inspection
[3] Greasing method: Frame interior (ball screw, rotation stop)
(1) Pull the rod approximately 40mm towards the non-motor side.
(2) Remove the rubber cap of the grease port.
(3) Insert the tip of the spray grease into the grease port and inject it for
one second.
(4) Move the rod full-stroke to apply the grease thoroughly.
Caution
Limit the time per spray of spray grease to 1 second or less.
Supplying too much grease may increase sliding resistance.
This may increase motor load and result in decreased performance.
If the grease enters your eye, immediately see a specialist physician for appropriate
care.
After finishing the grease replenishment, wash your hands carefully with water and
soap to rinse the grease off.
* To release the brake,
refer to Brake release method (page 3-10)

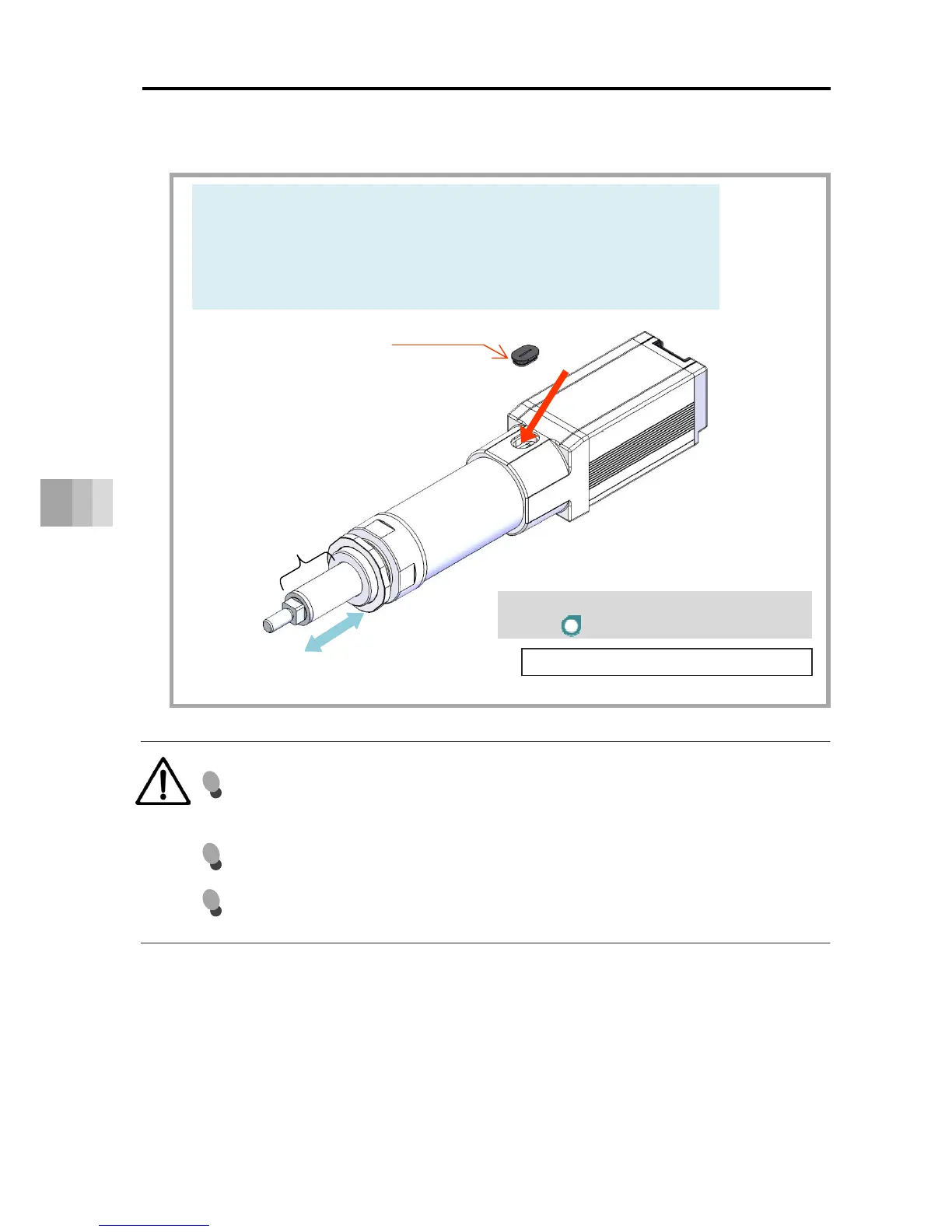

Rod internal parts greasing method
Rubber cap
40mm or so
