IAI EC-RR6*AH series User Manual

2.4 Installation of high rigidity slider type
2-19
2. Installation

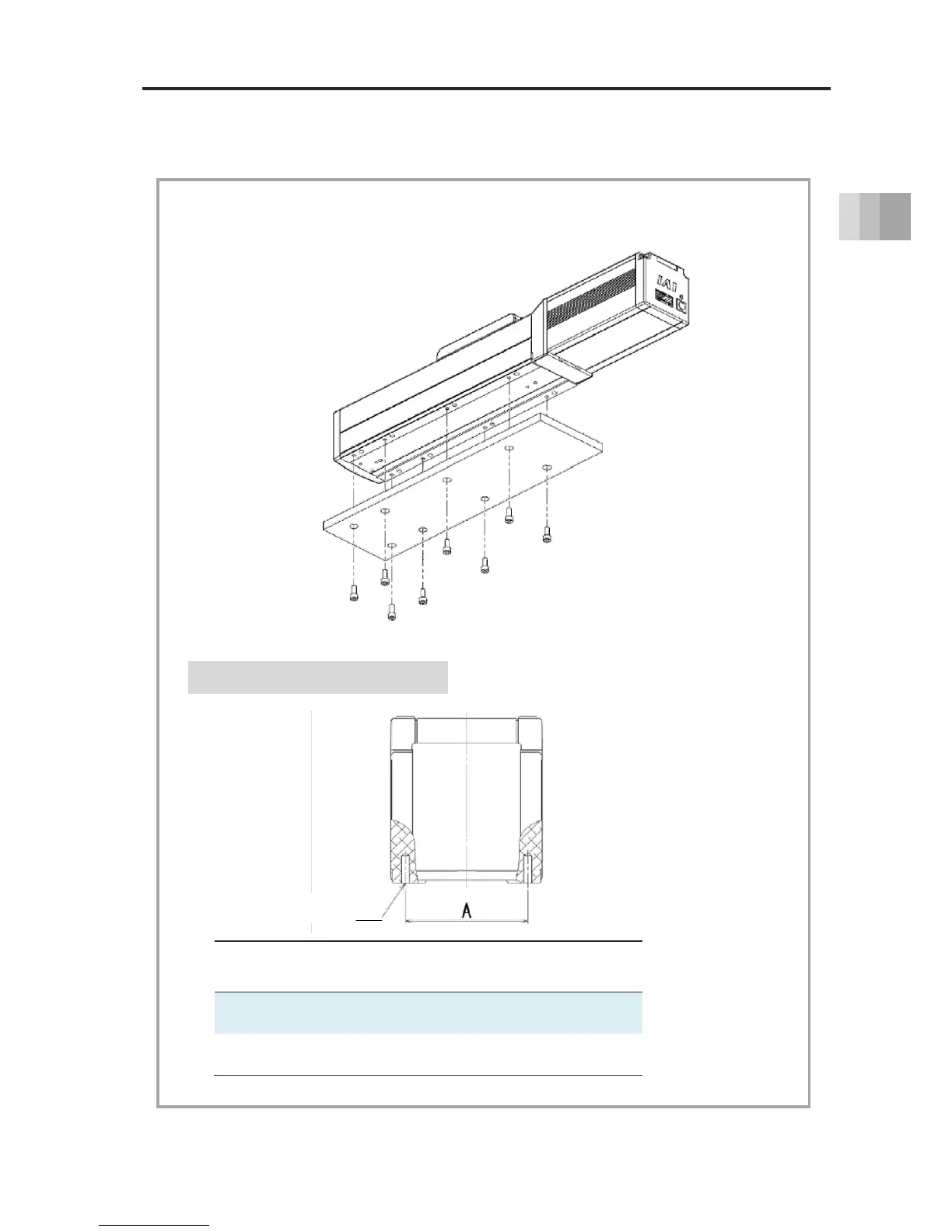

[When using the tapped mounting hole on the base bottom]
The unit has a tapped mounting hole at the bottom of the base for mounting.
→ For details regarding the position and dimensions, refer to "Chapter 9
External Dimensions".
Tapped mounting hole dimensions
Type
Tap
diameter
A
Effective thread
depth
EC-S6□AH
EC-S6□H
M4 51mm 8mm
EC-S7□AH
EC-S7□H
M5 61mm 10mm
Tap
