2.4 Installation of high rigidity slider type
2-18
2. Installation

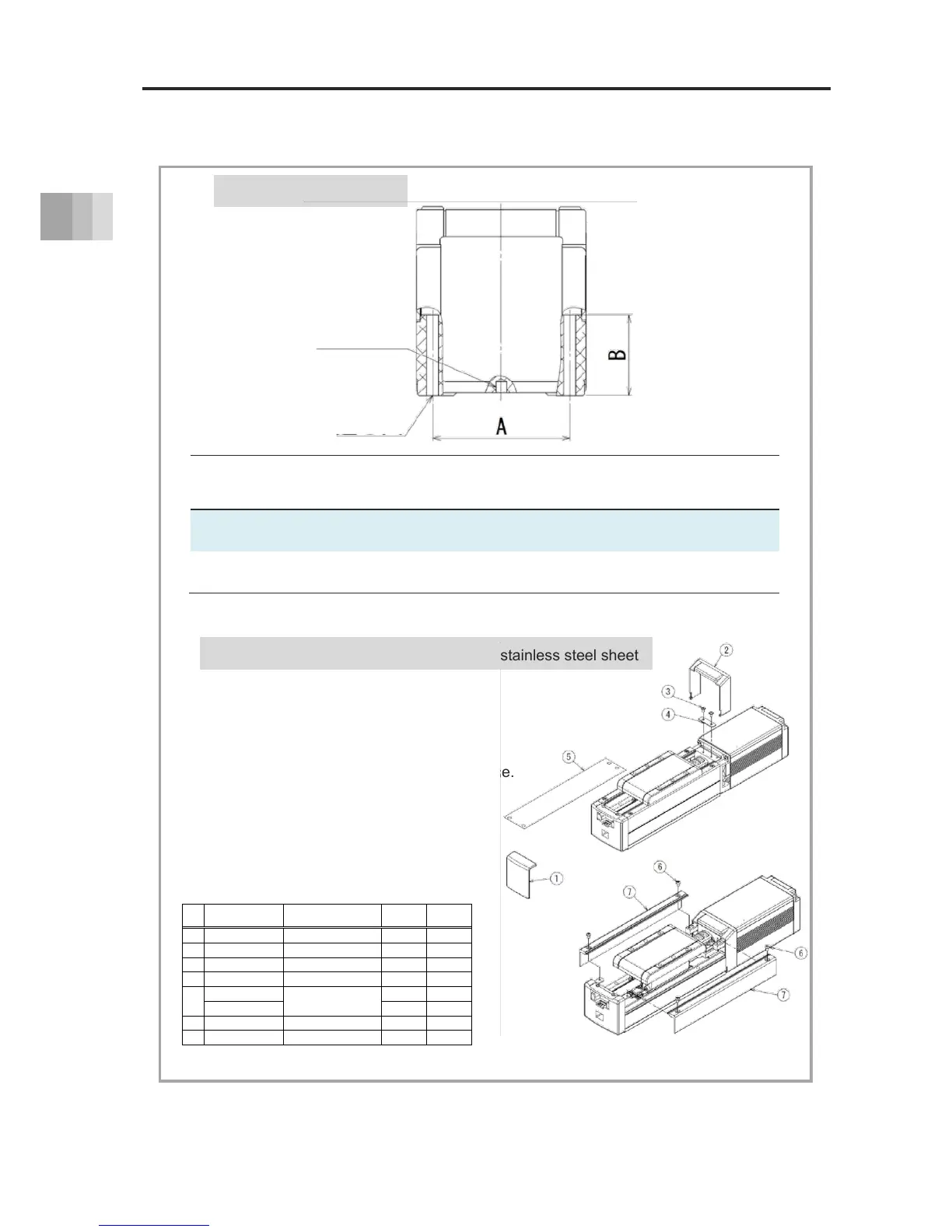

Through hole dimensions
Type
Through
hole
diameter
A B Reamed hole Oblong hole
EC-S6□AH
EC-S6□H
φ4.5 51mm 30mm φ4H7 depth 5 C: 4 D: 5 depth 5mm or more
EC-S7□AH
EC-S7□H
φ5.5 61mm 35mm φ4H7 depth 5
C: 4 D: 5 depth 5mm or more
Procedure for removing the side cover and stainless steel sheet
1. Remove (1) and (2).
2. Loosen bolts (3) and remove (4).
3. Pull out stainless steel sheet (5).
4. Loosen bolts (6) and remove (7).
* For assembly, follow the procedure in reverse.
No. Model Part name
S6□AH
S6□H
S7□AH
S7□H
1 Sheet clamp 1 1
2 Track housing cover 1 1
3 M3 × 5 Bolt 2 2
4 Sheet retainer 1 1
5
ST-EC-S6-***
Stainless steel sheet
1
ST-EC-S7-*** 1
6 M3 × 5 Bolt 4 4
7 Side cover 2 2
Through hole
Reamed hole
+0.012
0
+0.012
0
