2.6 Installation of radial cylinder type
2-42
2. Installation
[Precautions for horizontal mounting using flanges]

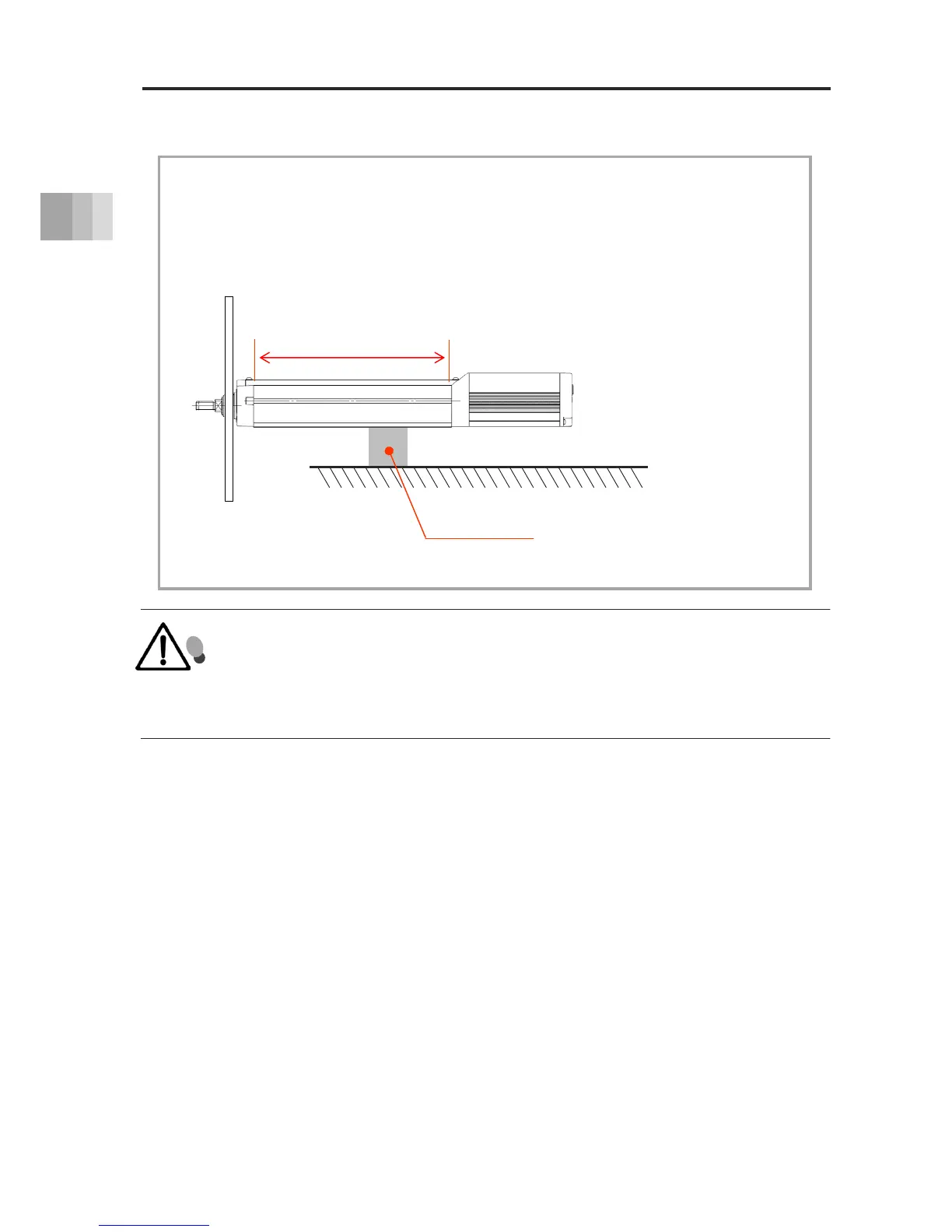

● Prepare a support block for the body, as shown in the figure below, for a stroke of
150mm or more.
● The support block should be installed on the frame motor side.
● We recommend either using the optional foot bracket or keeping the support block
(aluminum alloy, etc.) close against the frame.
Caution
Even when the stroke is less than 150mm, a support block is strongly recommended in
order to avoid vibration generated due to the operation conditions or installation
environment, which may lead to malfunctions or damage to parts.
.
Support block
Installation range
