Pre-15
INTELLIGENT ACTUATOR
Resin
Case
Lead wire
(10) Surg
e
protec
tor
Install a surge protector on the primary side of the noise filter.
Supplier: Okaya Electric Industri
es
Model: R
ï‚ž
A
ï‚ž
V-781BXZ-4 (th
ree-phase)
R
ï‚ž
A
ï‚ž
V-781BWZ-4 (single-pha
se)

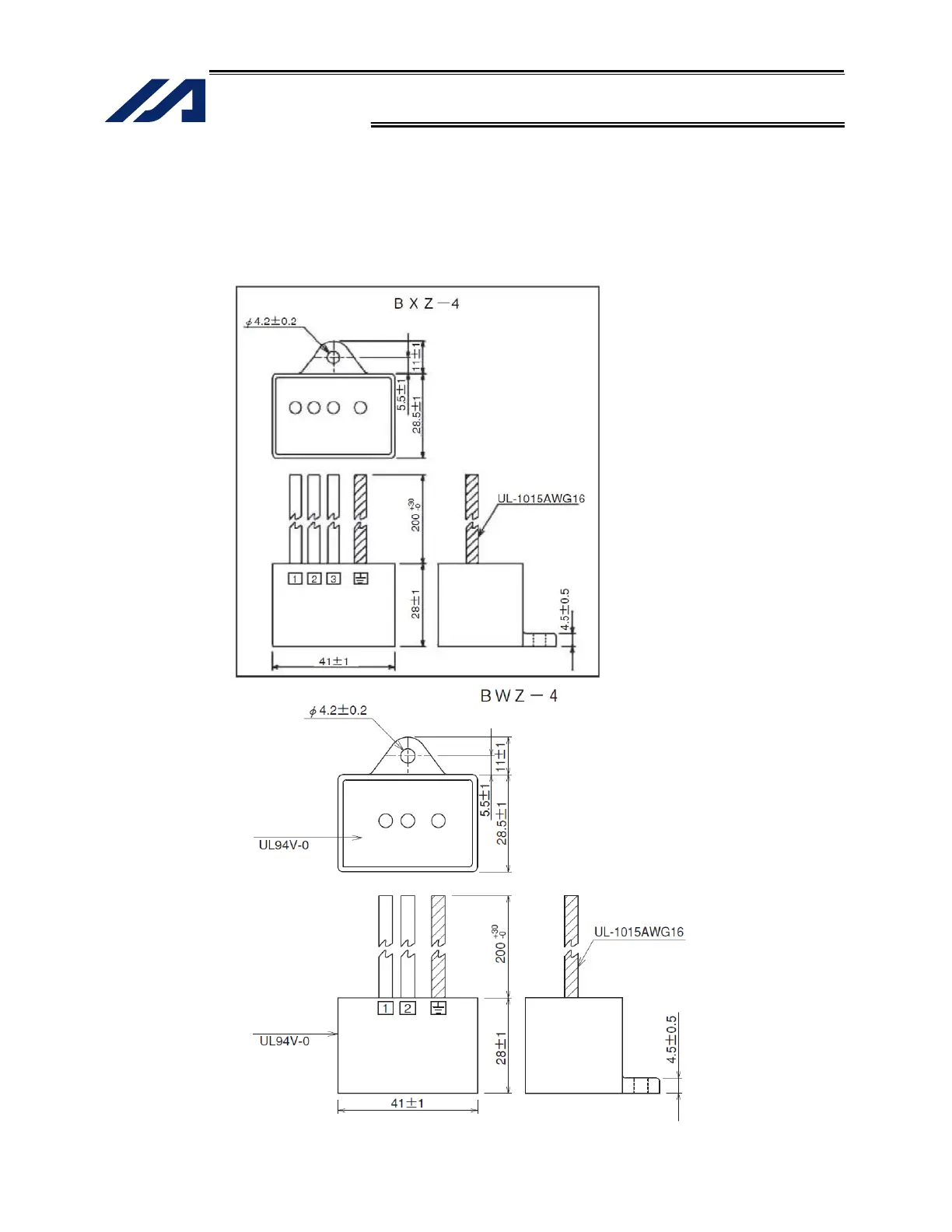

External Dimensions
[Fig. 6] External View of Surge Protector
26
28
