80 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
򐂰 Bottom
The
informational pane consists of running tasks, capacity information, basic
performance indicator, system health status, and status alerts.

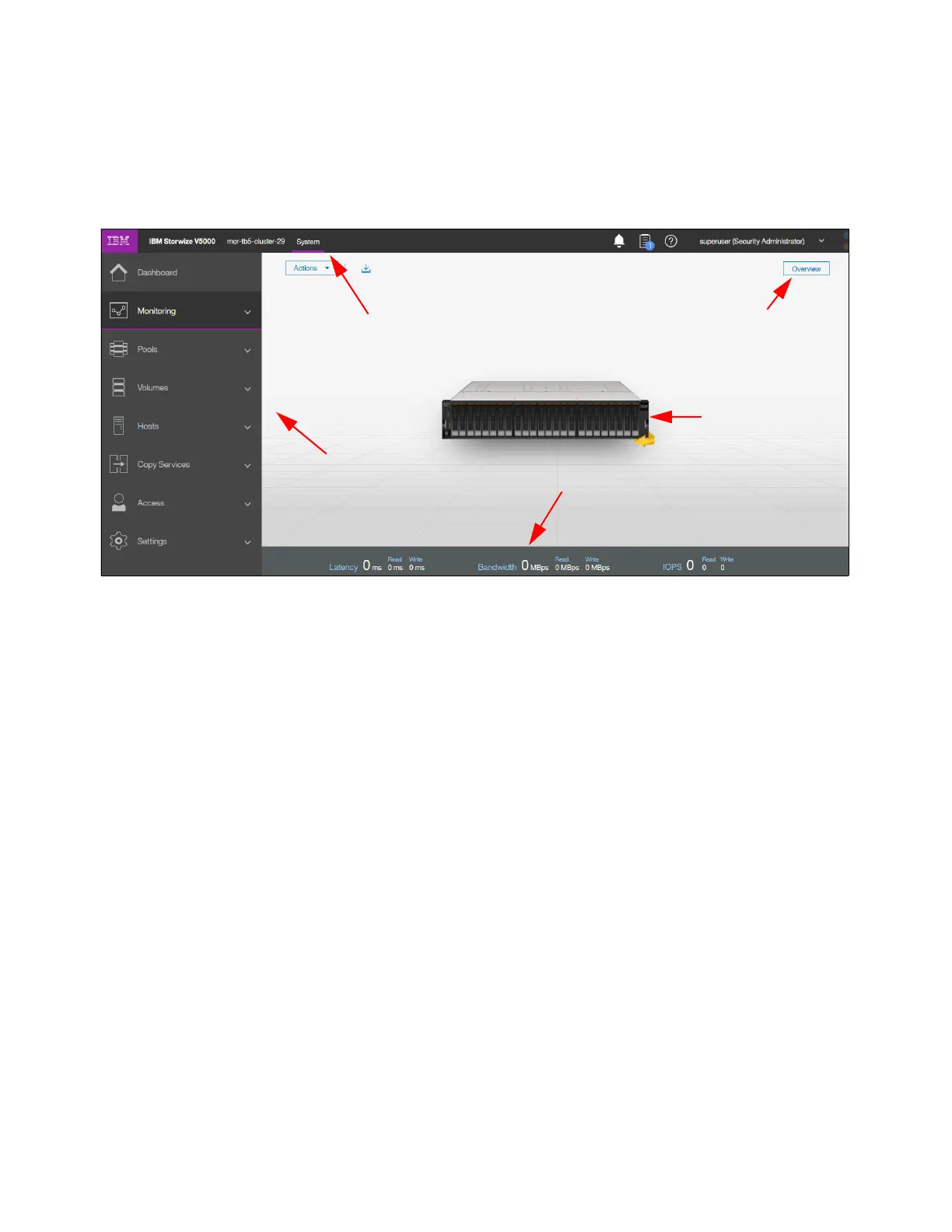

Figure 3-3 shows these main areas.
Figure 3-3 Main areas
The main areas are described:
򐂰 The left side of the window shows eight
function icons. We refer to them collectively as a
dynamic menu. The dynamic menu includes these function icons:
– Dashboard
– Monitoring menu
–Pools menu
– Volumes menu
– Hosts menu
–Copy Services menu
–Access menu
– Settings menu
Navigation Path
System Overview
Dynamic View
System Menu
Performance Meter
