372 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

Selecting a storage pool

To continue with the storage migration wizard, select a storage pool to migrate the imported

volumes to, as shown in Figure 7-25. Click Next to proceed to the last panel of the storage

migration wizard. The process uses the volume mirroring function that is included within the

Storwize V5000 Gen2.

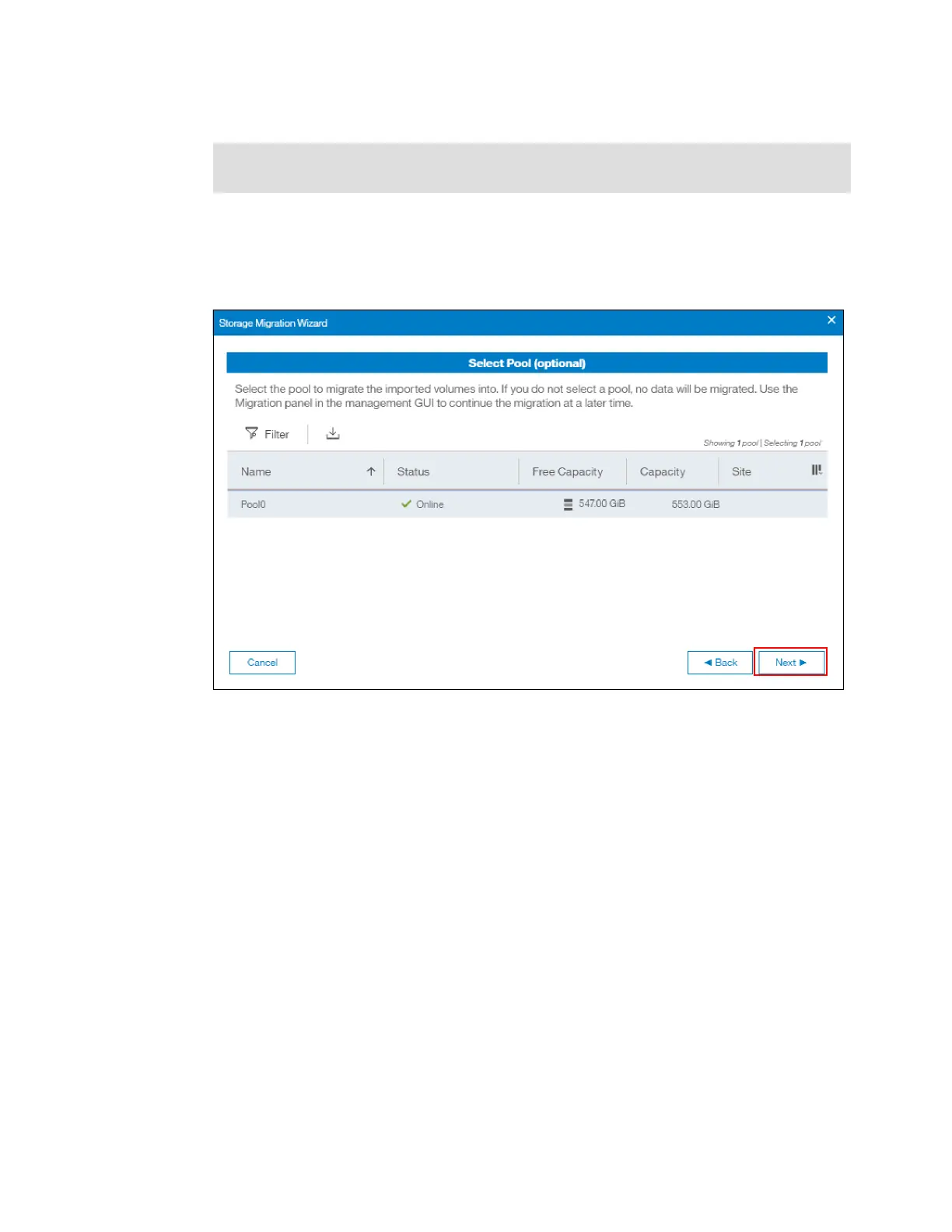

Figure 7-25 Storage pool selection

Note: This step is optional. You can bypass it by avoiding a pool selection, clicking Next

and moving to “Finishing the storage migration wizard” on page 373.
