420 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

To add a second copy, complete the following steps:

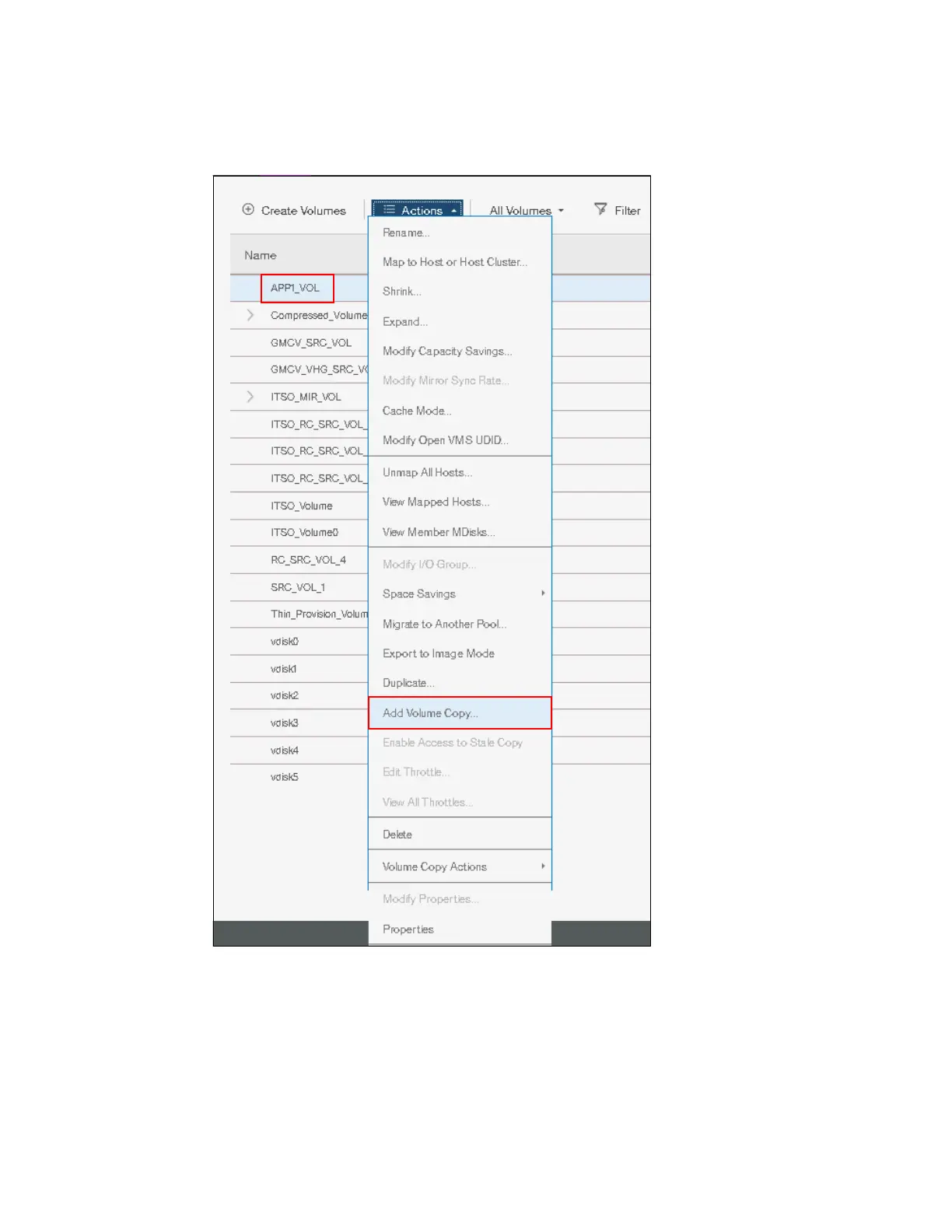

1. Select the volume and click Actions → Add Volume Copy, as shown in Figure 8-56.

Figure 8-56 Add Volume Copy option
